Machines & equipment for sale

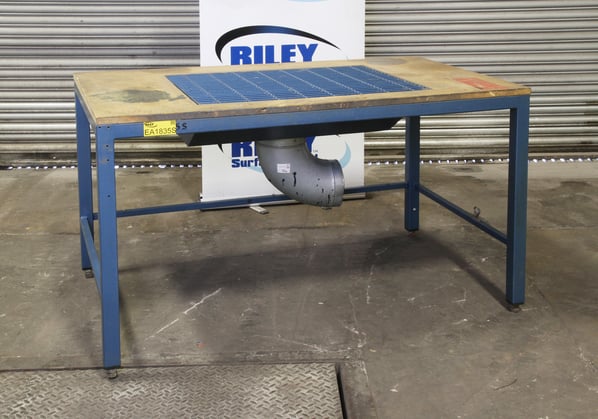

Lakestyle Fettling Bench 1500 x 900mm with Through Top Extraction

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
In stock now
From a working environment, Good Condition
Stock No
Down Draft
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
Process dependent
Filter Area ft² / m²
Work top 1500 x 900
Other Info
Grid size 840 x 640
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1500 x 900 x 900mm


Lakestyle Fettling bench 1500 x 900mm with through Top Extraction

The fan-less downdraft tables are designed to provide efficient capture of dusts, fumes, and gas/vapours generated from a variety of manufacturing operations and processes such as:

  • Buffing
  • Grinding
  • Sanding
  • Cutting
  • Polishing
  • Gluing
  • Bonding
  • Mixing
  • Certain welding applications

They are typically used on applications where work is done on a table and contaminants are generated close to the work surface. Contaminants generated during operations are drawn through the openings in the table top into the plenum base where larger particles and debris (if generated) will fall out of the air stream.

Former BAE Systems Machinery

This plant is one of several machines acquired during BAE System's reorganisation of their manufacturing facility at Brough, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality aviation and aerospace components,
but can provide a benefit to any industry.

Remaining airborne contaminants are drawn into the duct connected to the back of the table and are exhausted outside or to an optional filtration system for removal.

The industrial grade downdraft tables addresses indoor air quality issues in the workplace by:

  • Reducing the risk of operator exposure to harmful substances
  • The capture of metal dust from deburring/grinding; welding smoke capture; fume and vapor reduction
  • Drawing polluted air away from operator breathing zones
  • Flexible to accommodate various sizes and types of production equipment
  • Increasing employee and operator safety and comfort levels
  • Operating at a comfortable noise level
  • Being equipped with high efficiency filters for effective air cleansing

Specific detail obtained during site inspection

  • End unit has four legs, 50 x 50 box section
  • 1500 x 900 x 900 high external
  • Down draft 850 x 650 with collection hopper and ducting below.
  • Note: Lakestyle LW22 Wet Style Dust Control Plant EA1834S was arranged at BAE to service this bench

pdf icon Print / Download Lakestyle Fettling Bench 1500 x 900mm with Through Top Extraction Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
