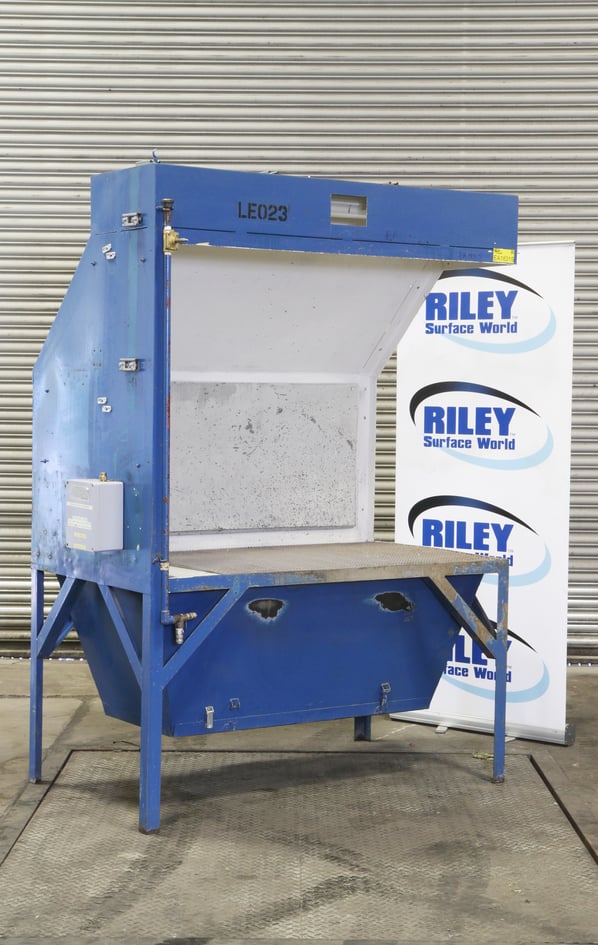

Lakestyle Down Draft Extraction Bench / Booth

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Stock No
EA1831S
Manufacturer
Lakestyle
Model
18DD-S
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
Process Dependent
Filter Area ft² / m²
Work Area 1200 x 900 x 690-1090mm high
Other Info
Add flexible right hand wall
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1525 x 1000 x 2200mm

Description

Lakestyle Down Draft Fettling Booth for the control of dusts from manual grinding, fettling, fiberglass and composite materials trimming, type operations.

The fan-less downdraft tables are designed to provide efficient capture of dusts, fumes, and gas/vapours generated from a variety of manufacturing operations and processes such as:

  • Buffing
  • Grinding
  • Sanding
  • Cutting
  • Polishing
  • Gluing
  • Bonding
  • Mixing
  • Certain welding applications

Former BAE Systems Machinery

This plant is one of several machines acquired during BAE System's reorganisation of their manufacturing facility at Brough, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality aviation and aerospace components,
but can provide a benefit to any industry.

They are typically used on applications where work is done on a table and contaminants are generated close to the work surface. Contaminants generated during operations are drawn through the openings in the table top into the plenum base where larger particles and debris (if generated) will fall out of the air stream.

Remaining airborne contaminants are drawn into the duct connected to the back of the table and are exhausted outside or to an optional filtration system for removal.

The industrial grade downdraft tables addresses indoor air quality issues in the workplace by:

  • Reducing the risk of operator exposure to harmful substances
  • The capture of metal dust from deburring/grinding; welding smoke capture; fume and vapor reduction
  • Drawing polluted air away from operator breathing zones
  • Flexible to accommodate various sizes and types of production equipment
  • Increasing employee and operator safety and comfort levels
  • Operating at a comfortable noise level
  • Being equipped with high efficiency filters for effective air cleansing

Specific details obtained during site inspection

  • 1200 x 900 x 1100 mm height clearance at front of booth/lowest point
  • Acoustic damper/control wall to rear
  • Twin tube fluorescent light to roof
  • Collection hopper/bucket with removable door for clean out
  • Working height floor to work surface/down draft grid 840mm
  • Originally  working as a cell with 2 other Climavent 4kw/5.5hp wet type dust control plants (EA1829 & EA1839) and 3 off Lakestyle Down Draft Fettling Booth - see booths here:-: EA1833SEA1832S & EA1831S

pdf icon Print / Download Lakestyle Down Draft Extraction Bench / Booth Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
