Climavent Lakestyle LW22 4kw/5.5hp Wet Type Dust Control Plant

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
In stock now
Seen working by RSW, Good Condition
Stock No
Seen working by RSW, Good Condition
Approx Duty CFM / M³/Hr
2500 // 4250
Filter Area ft² / m²
Wet Curtain Dust Control
Other Info
Rust free design
Our Central Warehouse, Aldridge, UK
Weight (kgs)
External Dimensions (WxDxH mm) [?]
900 x 1400 x 2300mm

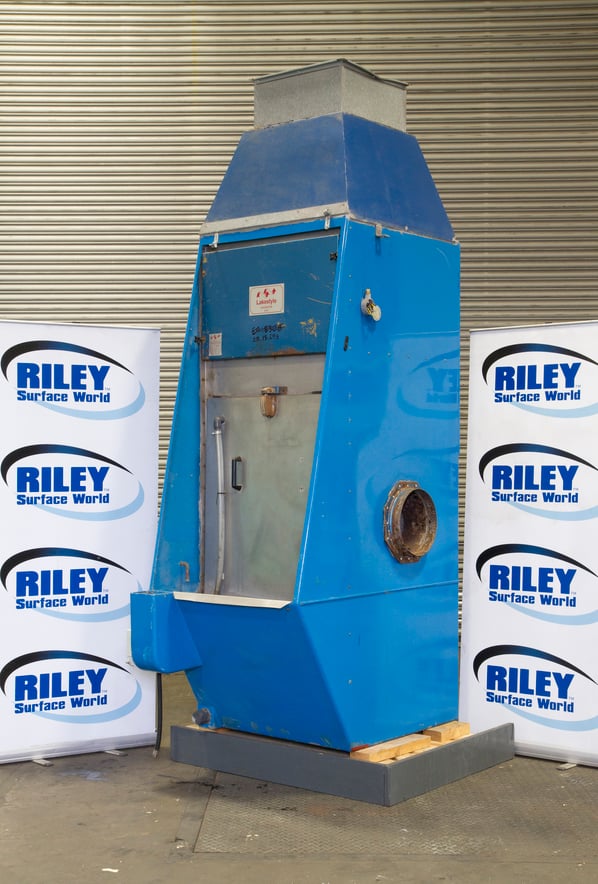

Climavent 4kw/5.5hp wet type dust control plant.

  • Climavent Wet Collector Units are manufactured to cope with the heavy burden of flammable dust arising from grinding, fettling, linishing, polishing and trimming applications. It is an efficient and effective way of disposing of those obnoxious fumes which arise within the workplace.

  • The unit is a self contained wet dust scrubber that generates a self induced solid water curtain that entraps and washes the dirty air removing any contaminates as it passes through.

  • Typical applications include any dust laden air-stream that may carry sparks such as from grinding and fettling operations and where the type of dusts may be governed under the ATEX regulations whereby explosive dust are generated within such operations or processes as shot blasting and machining of aluminium, magnesium or any other white metal components.

  • Wet Collectors are able to draw the dust-laden air through a tank of water ensuring heavy dust particles are thrown directly into the water and settle as sludge in the base of the unit for subsequent removal.

  • Air and light dust are drawn over the surface of the water and scrubbing assembly turn the air and entrained water, wetting even the finest of dust particles. A series of baffles removes the wetted dust and clean air is discharged from the top of the unit back into the works atmosphere.

  • The Wet Dust Exhaust Units are renowned for their robustness, as unlike many other units, there are no moving parts filters or sprays to contend with. This allows them to maintain their original suction rates, even under the most arduous of conditions.

  • More than one LW22P Wet Collector Unit can be arranged in parallel which provides filtration for larger centralised systems.

  • Climavent’s LW22P unit has a non corrosive GRP body with stainless steel internal scrubbing components and if serviced on a regular basis, will provide many years of efficient extraction. This eradicates the common problem associated with Wet Dust Exhaust units – the metal enclosure and internal components can often start to corrode after a period of time.

  • Including in the design are a self contained silencer, water make up box, 4kW fan and fan starter, duct Inlet of Ø300mm positioned at the side and having an approx. service duty of 2500cfm.

Includes: - Wall mounted main fan starter

Specific information from physical inspection

  • Stainless steel front door
  • Unit has both left hand and right hand inlet with 300 Ø
  • Currently set to right hand
  • Left hand inlet fitted with removable blanking plate
  • Currently working as a cell with 2 other Climavent 4kw/5.5hp wet type dust control plants (EA1829 & EA1839) and 3 off Lakestyle Down Draft Fettling Booth - see booths here:-: EA1833SEA1832S & EA1831S

pdf icon Print / Download Climavent Lakestyle LW22 4kw/5.5hp Wet Type Dust Control Plant Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
