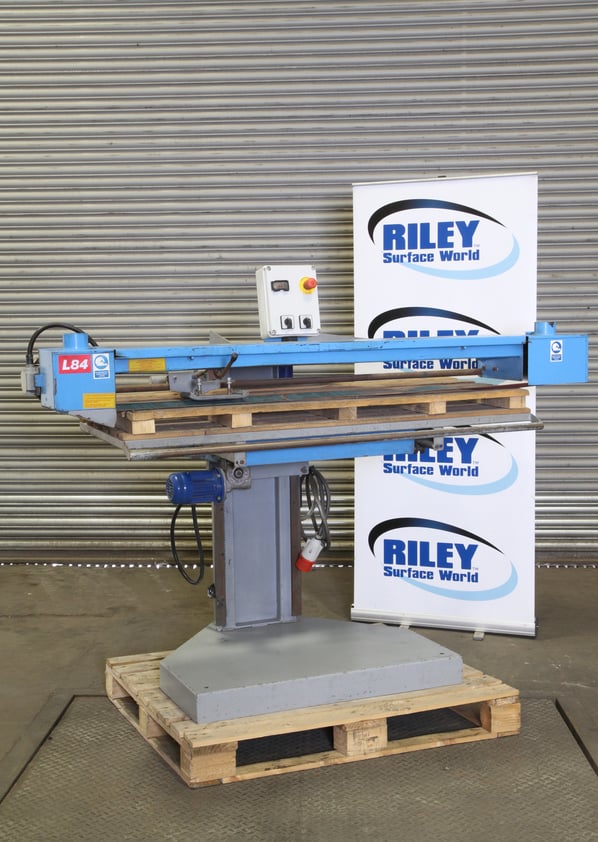

Surtech L84 Pad Sander / Long Belt Spot Linisher

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Stock No
PA1144
Manufacturer
Surtech
Model
l84
Year of Manufacture
2006
Serial
221
Condition
From a working environment, Good Condition
R.P.M.
1500 // 2800
Hp/Kw
3 // 2.2
Other Info
Working bed size 1450 x 550
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
218Kg
External Dimensions (WxDxH mm) [?]
2000 x 1380 x 1500

Description

Surtech Pad Sander / Long Belt Spot Linisher

Designed for abrasive belt, grinding, deburring, graining, finishing and polishing of sheet and plate, hollow sections, flat bar, and profiles etc.

The horizontally arranged abrasive belt runs over the length of the table. The table moves up and down to adjust the height / thickness of the workpiece. The table can also be moved back and forth.

A contact unit is manually moved over the abrasive belt, contact pressure is applied manually via a lever connected the the contact unit. The contact unit can be fitted with a variety of different pads or contact wheels to suit the application.

By moving the contact unit and the table all parts of the workpiece up to the size of the table can be reached.

An added feature to this machine is the powered table elevation which raises and lowers the work table.

Principle machine operation

  • Abrasive belt
  • Contact unit moves up and down, and left and right.
  • Table moves up and down, and forwards and backwards.

Applications

  • Metallic and none metallic materials.
  • Grinding and finishing of sheet, plate, extrusions, and other flat parts.
  • Deburring of laser, plasma, and flame cut blanks.
  • Deburring of guillotined, sawn, nibbled, and punched parts.
  • Finishing of fabrications.
  • Grinding and blending of welds.
  • Grinding of castings.
  • polishing of stainless steel.
  • Sanding of wood, paint, plastics, etc.
  • Blending of profiled parts.
  • De-nibbing and polishing.

Technical details

  • Table lengths 1450mm, Table width 550mm. NOTE, Table and width does not mean max working dimensions, these also depend upon on the contact roll or pad assembly used.
  • Vertical table travel approx. 500mm.
  • Abrasive belt drive motor 1400 rev/min, 2830 rev/min dual speed.
  • Abrasive belt dimensions min 3850 to 3950 max x 100 mm wide
  • Pulley diameter 150mm.
  • 2 x Extraction flanges.
  • No volt control circuit.
  • Overload control.
  • Approx. weight 200kg .
  • Overall dimensions 2000 x 1380 x 1500mm.

pdf icon Print / Download Surtech L84 Pad Sander / Long Belt Spot Linisher Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
