Machines & equipment for sale

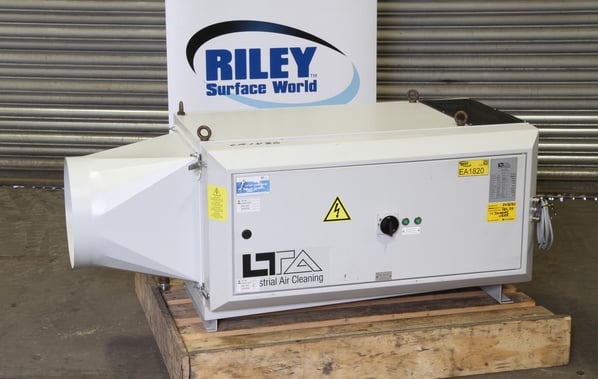

LTA (Lufttechnik GmbH) Electro Static Mechanical Air Cleaner AC3002-R

Stock No
EA1820
Manufacturer
LTA (Lufttechnik GmbH)
Model
AC3002-R
Year of Manufacture
2015
Serial
4000000991
Condition
Excellent Condition
Approx Duty CFM / M³/Hr
706 // 1200
Other Info
340 inlet
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
135
External Dimensions (WxDxH mm) [?]
1470 x 1616 x 665

Description

LTA Electro static air filters use both Mechanical and Ionised air filtering. A mechanical filter removes larger particles then charged collectors plates are used  to remove air born particles and mist particles, clean air is exhausted out through a final filter medium.

Function



The polluted air is drawn in through the pre filter, larger particles are caught in this,  this filter can be made for specific sizes of particles you require to be retained, i.e. different filters for different applications. All the in-coming particles are charged in the ioniser and are deflected and precipitated by an electrical field between the collector plates. The voltage applied to the collector and the ioniser can be adjusted to match the application. The clean air now flows through the post filter and is discharge out the exhaust.

When the machine is turned off it will continue to run for approx. 30 seconds drawing in air.

Areas of use

Manufacturing machines can be exhausted directly, the precipitated medium can flow directly back into the machine after cleaning or be collected in a separate tank. On machines with out any hoods or enclosures the medium, such as smoke or coolant mist vapors are sucked into the unit through a suitable funnel situated near to the machine.

In larger manufacturing workshops a shop installation can be designed to have a centralised exhausted system.

 Features

  • Door Switch
  • Air Pressure Controller
  • Auto over-run (30 seconds approx.)

Spares and servicing

  • Spares are available through a midlands based company, Arden Environmental.
  • Washable filters for extended life, only need changing if they are damaged.



pdf icon Print / Download LTA (Lufttechnik GmbH) Electro Static Mechanical Air Cleaner AC3002-R Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
