Machines & equipment for sale

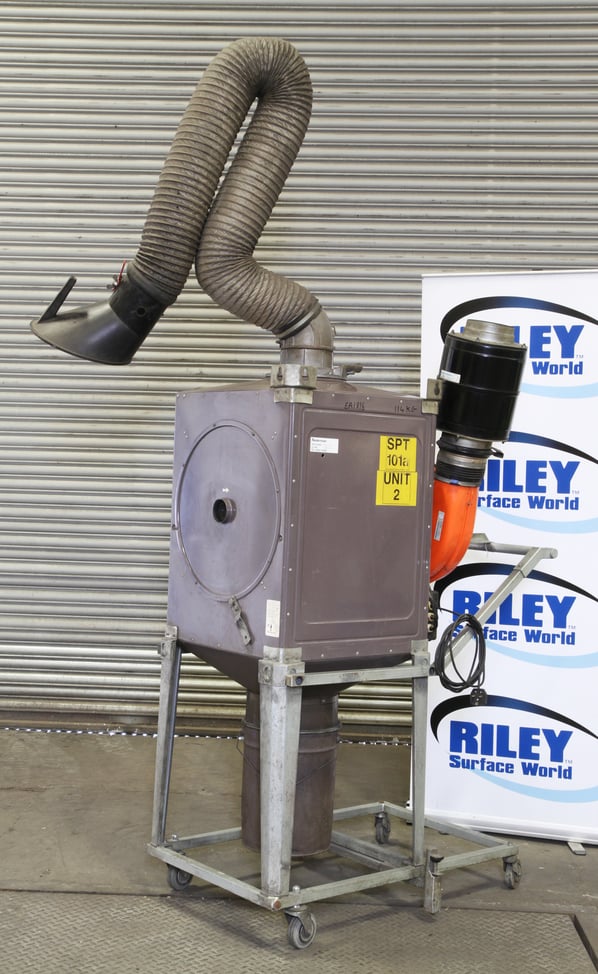

Nederman Portable Dust and Fume Extractor with Articulated Collector Arm

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition, Seen powered at RSW
Stock No
EA1816
Manufacturer
Nederman
Model
Filterbox
Serial
663 601163
Condition
Good Condition, Seen powered at RSW
Approx Duty CFM / M³/Hr
350CFM approx.
Filter Area ft² / m²
13M2 approx.
Other Info
Versatile and flexible
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
114
External Dimensions (WxDxH mm) [?]
800 x 1100 x 2600

Description

Nederman FilterBox portable welding fume and dust extractor for capturing and eliminating dry dust particles  at source.

The Nederman Filterbox offers a problem free safe solution for dust and fume management. The Filterbox was developed to cater for a number of important criteria offering a simple and flexible solution to the portable capture of dry dust generated from manufacturing operations such as  metal oxides, talcum powder, pigments, lime and grinding dusts.

The FilterBox is a compact filter already established in the market is unique in its application range. It has filter cartridge with 13m 2 area and unique cleaning system by scraper blades.

A serviceable filter is supplied with the unit

FILTERBOX with 1 to 3 minute cleaning cycle.

This model provides the operator with the ability to clean the filter at any time they deem necessary or as part of a planned maintenance  program.

The process is instigated by pressing the cleaning cycle push button on the control box. The fan stops automatically as the cleaning motor starts and the cleaning cycle takes around 3 minutes

A complete line of accessories (not included) including trolley (cart), the N29 exhaust, muffler and extraction arms make FilterBox arguably the best self-cleaning filter market in its category.

Both in mobile configuration on trolley, as in fixed, with floor stand or wall, FilterBox features high efficiency exhaust and high degree of filtration and can serve up to two points of simultaneous use.

Features and benefits –

  • Wide range of optional extras
  • Mobile or stationary use
  • User friendly and superior manual filter cleaning,  for long filter life
  • Mounted simple control box
  • Dust free filter replacement and emptying of dust bin
  • Automatic start/stop
  • Ergonomic features like power socket, and ergonomic handle
  • HEPA-filter as option



A prosperous business demands sound, and safe workplaces. Nederman portable  dust collectors can make a big change! Capturing dust at the source is the only effective way to eliminate the health hazard. Nederman's portable  Dust Extractors are cost effective for any budget.

  • Portable filters for versatile use
  • Compact and user friendly design
  • Cleanable filters - low operating cost
  • Safe disposal of collected dust

pdf icon Print / Download Nederman Portable Dust and Fume Extractor with Articulated Collector Arm Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
