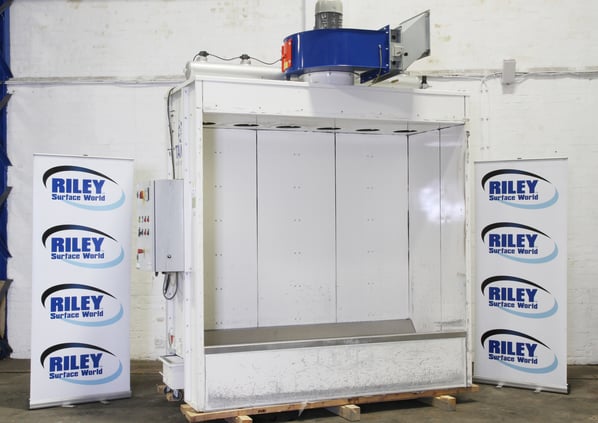

Tama Air Filtration Powder Coating Spray Booth

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Stock No
GA833
Manufacturer
Tama
Model
Manucompact 6000
Year of Manufacture
2014
Serial
X 08814
Condition
From a working environment, Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
2250 x 1720
Process Stages
Single manual powder booth
Other Info
Air Flow 6000M3/h // 4kW 5.5Hp Roof Fan
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
680
External Dimensions (WxDxH mm) [?]
2750 x 1200 x 3050

Description

Tama powder coating spray booth is a dry filtration system to purify air from suspended solid particles.

The spray booth Manucompact installation ensures air quality in the production site and protection of the operator. This spray booth represents the perfect solution for suction of potentially explosive dusts (ATEX) coming from painting processes.

Technical Details

  • MANUCOMPACT 6000
  • Certification code II 3 D Ex tD A22 T200°C -10‹T‹40
  • Weight 680 kg
  • Number of filtering elements  6
  • Filtering surface 114 m² /1140ft²
  • Working Temperature °C -10‹T‹40
  • Pneumatic feeding (ISO Class 2.4.1 according 8573-1:2010) Ø 1" GAS
  • Electric feeding 230/400 V - 50/60Hz
  • Cartridge cleaning system pulse-jet
  • Number of cleaning valves 6
  • Type of cleaning valves Ø 1" - 24 V DC
  • Compressed air tank working pressure bar 4.5

PERFORMANCE CHARACTERISTICS

  • Nominal air flow m³/h 6000
  • Nominal fan power kW 4 / 5.5Hp
  • Max compressed air consumption Nl/shot 87

Additional paneling (Image 13) may allows for the booth to be extended to suit your application.

Includes a range of ducting (Image14)

pdf icon Print / Download Tama Air Filtration Powder Coating Spray Booth Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
