Machines & equipment for sale

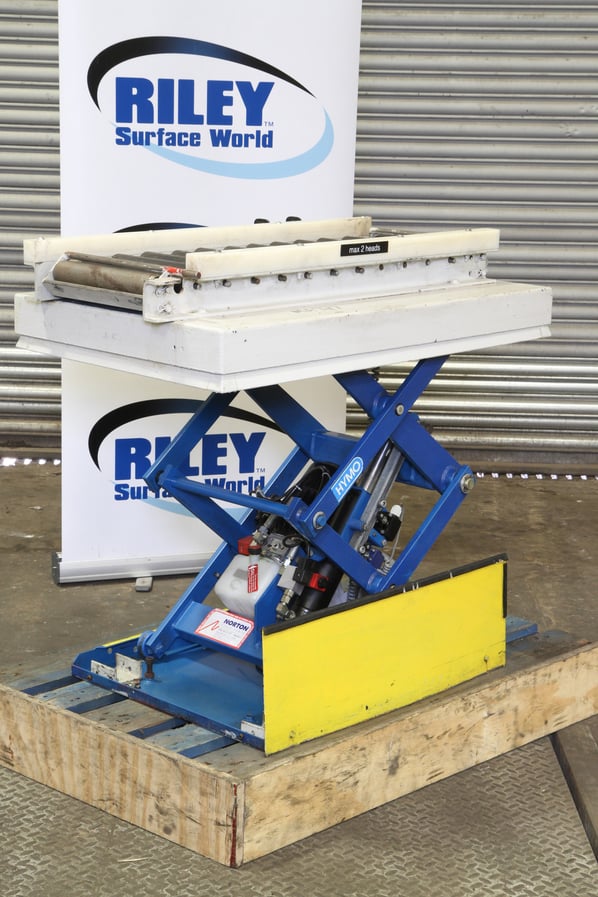

Hymo Hydraulic Scissor Lifting Platform

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Excellent Condition
Stock No
MA707
Manufacturer
Hymo
Model
Hymo AXX 4
Condition
Excellent Condition
Capacity
400Kgs
Process Application
Lifting and Raising of parts or tooling
Other Info
Table Size 1000 x 600/ Lift Stroke 800mm
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
155
External Dimensions (WxDxH mm) [?]
605 x 1040 x 960

Description

Hymo AXX 4 series lifting tables are modern, reliable devices whose main task is to effectively level the difference in levels in various types of work environments.

A characteristic feature of these models is the double scissors system used in the vertical applications.

The dimensions of the platform are 1000 x 600 mm, table is fitted with a roller track, 300mm x 1000mm. The lifting height that the device reaches is 800 mm and the minimum height is  200 mm.  The maximum payload is 400 kilograms.

Lifting Boxes on a Production Line

The process of unloading and loading components on a production line or goods in exposes individuals to a higher risk of musculoskeletal disorders (MSD’s) both Upper Limb Disorders or Lower Limb Disorders with bending, reaching, twisting and there is a repetitive nature to the process.

pdf icon Print / Download Hymo Hydraulic Scissor Lifting Platform Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
