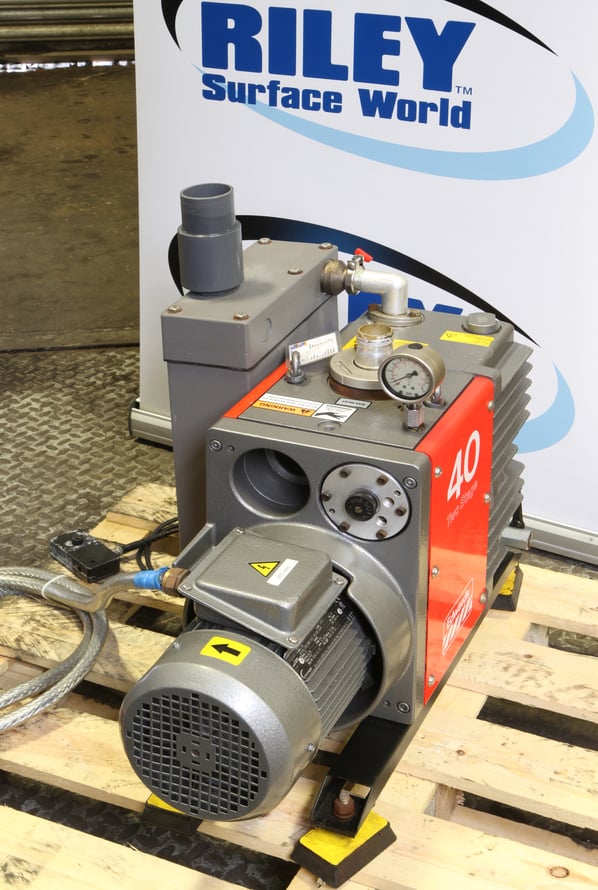

Edwards Oil Sealed, 2 Stage Vacuum Pump

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Excellent Condition, Current Model, Seen powered at RSW
Stock No
MA700
Manufacturer
Edwards
Model
E2M40
Serial
11541 FF
Condition
Seen working by RSW, Excellent Condition, Current Model, Seen powered at RSW
Capacity
approx. 37 m3/hr (21.8 CFM).
Process Application
2 stage Vacuum Creation
Other Info
Oil Sealed
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
82
External Dimensions (WxDxH mm) [?]
370 x 690 x 630

Description

Edwards E2M series two stage oil sealed rotary vane vacuum pumps are renowned for their high ultimate vacuum, rapid pumping speeds, quiet operation and ability to handle water vapour. These direct drive rotary vane pumps are inherently compact and vibration free, and with their finger-proof fan and coupling housings they offer excellent operator protection.

 Typical Applications

  • Vacuum metallurgy processes.
  • Thin film coating technologies.
  • Pharmaceutical freeze drying.
  • Refrigeration and air conditioning system evacuation, drying, and backfilling.
  • Transformer and cable drying and impregnation, insulating oil treatment plant.
  • Lamp manufacture.
  • Cryogenic vessel evacuation.
  • Vacuum drying and distillation in chemical industries.
  • Semiconductor device manufacture.
  • Backing pump for high vacuum applications.

Reliable system protection devices

Every pump has protection devices to prevent oil and air suck-back into the vacuum system if the pump stops while under vacuum. A variety of protection devices are used, depending on the pump size and cost, but emphasis is always placed on reliability and simplicity. When you use gas ballast on some of the pumps, you must use a solenoid operated gas ballast control valve to prevent air suck-back.

Positive Pressure Oil Lubrication

The EM pumps incorporate a well proven positive pressure oil lubrication system which as been developed by Edwards to ensure correct lubrication in all duty modes and particularly to prevent oil starvation with high gas loads.

An integral oil pump ensures that a more than adequate oil flow is pumped throughout the stator/rotor assembly at all times.

This oil lubrication system means that the level of oil in the reservoir is less critical than with other pump designs. All pumps can operate with oil levels as low as 50-70 of the maximum. A full length, easily visible oil level sight glass allows you to conveniently monitor the oil level.

Gas Ballast Facility

The EM pumps have a gas ballast valve. The valve is used to introduce a suitable gas into the stator during the compression stage: this prevents condensation of vapors inside the pump, dilutes and ejects corrosive gases and purges the oil of gases and vapors. Therefore, the use of gas ballast reduces oil degradation and pump corrosion.

Low Noise Levels

The EM pumps maintain Edwards’s reputation for quiet operation pumps with a typical noise level of 65dB(A).

Easy Maintenance

The advanced lubrication system allows the EM pumps to work with wide oil level tolerances, which reduce the need to top-up the oil.

All EM pumps are constructed with internal dowels, which reduce the need for skilled setting of tolerances, when the pump is dismantled. The pumps are designed so that all key components are easily accessible. The exhaust valve seals and oil distributor seals are exposed after the top cover is removed. The shaft seal can be replaced quickly without stripping down the pump.

EM Range

EM series pumps are rugged mechanical oil-sealed pumps with speeds ranging from 0.7 to 275 m3/hr (30 to 206 CFM). Compact and quiet, they feature advanced lubrication circuits, high reliability, and accessories to suit specific application needs.'

pdf icon Print / Download Edwards Oil Sealed, 2 Stage Vacuum Pump Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
