Machines & equipment for sale

Romer 2m x 2m x 2m 225°C Electric Oven

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability:
In stock now
Condition
Brand New, Unused, Current Model

From just £393.69 a month

Finance available 4 years at 3.63% flat rate and VAT value as a deposit.
Terms & Conditions Apply [?]

Get a Quote >

Stock No
OA2176
Manufacturer
Romer
Model
SLS-450
Year of Manufacture
2021
Serial
A18D003.000050
Condition
Brand New, Unused, Current Model
Internal Size (WxDxH mm) [?]
2000 x 2000 x 2000
Max Temp
230°C
Other Info
Touchscreen HMI Control
Weight (kgs)
1500Kgs
External Dimensions (WxDxH mm) [?]
2560 x 2340 x 2710

Description

Romer 8m³ 225°C Industrial Oven Range

Romer Electric Ovens are 225°C general purpose, electric, batch ovens ideal for a vast range of low temperature thermal processes such as drying, curing and pre-heating.

These ovens are from the well respected Polish manufacturer, Romer, and include upgraded controls and build features for the UK market, as designed by Riley Surface World.

Constructed from a heavy duty steel box sectioned frame with infilled 160 and 300 mm thick insulated galvanized panels and externally clad in a hard wearing powder coated finish.

During use air is circulated around the oven by a roof mounted fan through adjustable hot air vents in the side panels.
This oven includes forced air ventilation during or after the cycle, with programmable vents.

The MTS + ThPID iCure Controller included, improves the functionality of the oven by offering user control of all of the processing parameters and well as offering full tractability not only of the process, but also power consumption. The controller comes complete with additional PC software, so any data stored in the controller can be recorded and transferred to your own PC for review and archiving.

Typical applications

  • Powder Coating Curing Processes
  • Water based paint stoving
  • Curing resins, rubbers and composites materials
  • Pre heating and low temperature heat treatments
  • Processing plastics
  • Thermal bonding
  • Drying applications
  • Thermal testing etc.

Benefits and Features

  • Forced air circulation with roof mounted fan
  • Multi positional hot air return vents for uniform heat distribution
  • Temperature calibration achieved by adjustable holes in side walls
  • Forced air ventilation included
  • Double loading doors with adjustable, explosion proof, slam shut positive, door locks
  • Design tested to better than ± 5°C over a 9 point survey
  • Controlled and automatic exhaust damper for programmed fume ventilation as you need for your process
  • Insulated floor with trolley entry channels
  • Galvanised coated internal work chamber sheets
  • Modular electric heating system - Swiss made finned elements, easy access panel, and an innovative design offering instant heat generation
  • Silicone door seals
  • 240mm + insulation
  • CE Marked
  • Product trolley supplied
  • 1 year manufacturer warranty

Romer Oven Features

Controls

  • ThPID control system offsets the effect of heating inertia called hysteresis. The standard solution is based on a circuit that switches elements on and off with constant power. ThPID dynamically adjusts the voltage at the setpoint temperature reducing power user and increasing accuracy
  • MTS control system provides more accurate temperature measurement by using multiple sensors across the oven chamber
  • Side mounted control panel with HMI display and an easy view status sounder and light bar
  • Over temperature protection
  • PLC controlled with iCure 7" Touch screen HMI panel with programmable functionality
  • Large colour touch panel, providing full control of all operational parameters.
  • Save up to 20 programs and 10 consecutive triggers governing ramps, dwells, time and temperatures
  • Built in calendar
  • Process memory review - internal memory for 20 cycles
  • Start timer - begin your process before you reach the factory
  • On-board energy consumption monitoring and recording
  • Process memory review
  • ModBus MASTER/SLAVE RS485 compatible
  • USB port for data capture to PC based iCure analysis software
  • iCure PC analysis software

Romer - Experienced Oven Manufacturer

Romer Industrial OvensThe outstanding feature of Romer ovens is the quality of manufacturing. Everyone who stands in front of a Romer, from buyers to calibration engineers, have commented how well constructed they are.

Romer have been manufacturing ovens and powder coating machines from their base in central Poland for over 25 years and export to 40 countries worldwide. Their 8,000m² facility employs over 150 staff and has passed Riley Surface World's inspection and auditing requirements.

Riley Surface World and Romer have secured a partnership to service the UK market with large (over 1m²) ovens up to 225°C. These ovens are perfect for curing powder coating but the range of applications is large.

 General Specifications 8m³:

  •  Internal Dimensions: 2000 x 2000 x 2000 mm high
  •  External Dimensions: 2520 x 2300 x 2710 mm high
  •  Maximum continual process temperature: 225°C
  •  Access doors – 2
  •  Product Trolley Supplied
  •  Power rating:  45 kW
  •  Heat up Time: 15 – 40 mins to 180°C
  •  Tolerance: <+/- 5°C @ 180°C

pdf icon Print / Download Romer 2m x 2m x 2m 225°C Electric Oven Datasheet

Additional files

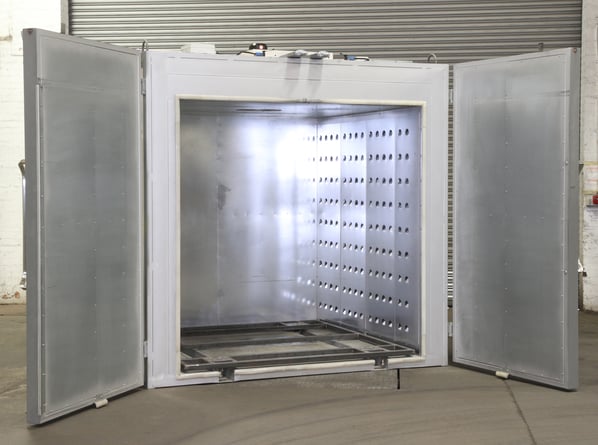

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
