Machines & equipment for sale

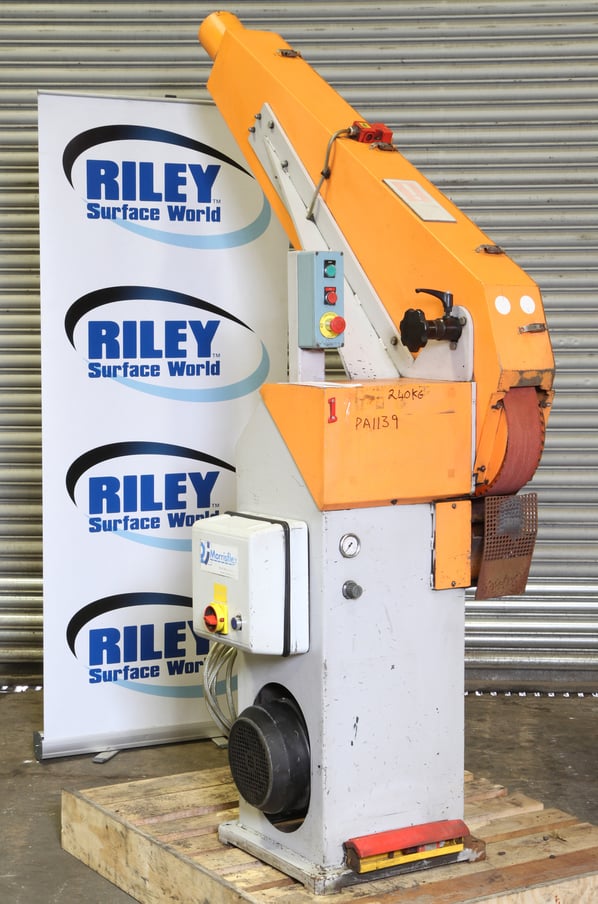

RJH Morrisflex Cougar Heavy Duty Pedestal Mounted Abrasive Belt Linisher

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Good Condition, Current Model, Seen powered at RSW
Stock No
PA1139
Manufacturer
RJH Morrisflex
Model
Single speed DC Brake CG1/7P VP3019/001
Year of Manufacture
2011
Serial
85014
Condition
Seen working by RSW, Good Condition, Current Model, Seen powered at RSW
R.P.M.
3000
Hp/Kw
5.5kw
Other Info
Actuated DC Brake
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
240
External Dimensions (WxDxH mm) [?]
670 x 1460 x 2100

Description

The MorrisFlex COUGAR is a heavy duty off-hand abrasive belt grinder which is suitable for continuous production.

KEY FEATURES

  • Sleek pedestal design for maximum access to the contact wheel.
  • Longer belt for increased belt life.
  • Pneumatic belt tensioning.
  • Positive belt tracking by intermediate pulley.
  • Supplied with contact wheel.
  • Emergency stop foot pedal.

SAFETY FEATURES

  • Full guarding with electrical interlocks.
  • Push-button controls.
  • Dust extraction hopper with 6” (approx. 152mm) outlet
  • 5” (approx. 127mm) top extraction spigot

TECHNICAL SPECIFICATIONS

  • Electrical Supply 415V/3Ph/50Hz.
  • FLC 12.8Amps.
  • Belt Size, width x length 75 x 3450mm.
  • Motor 5.5kW / 7 Hp.
  • Motor Speed 2880rpm.
  • Belt Speed 48m/sec.
  • Contact Wheel size  Ø300 x 75mm. (Can be changed for up to 100mm wide wheels and belts).

Spares

  • There are a selection of spare contact wheels, grinding belts and rollers





pdf icon Print / Download RJH Morrisflex Cougar Heavy Duty Pedestal Mounted Abrasive Belt Linisher Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
