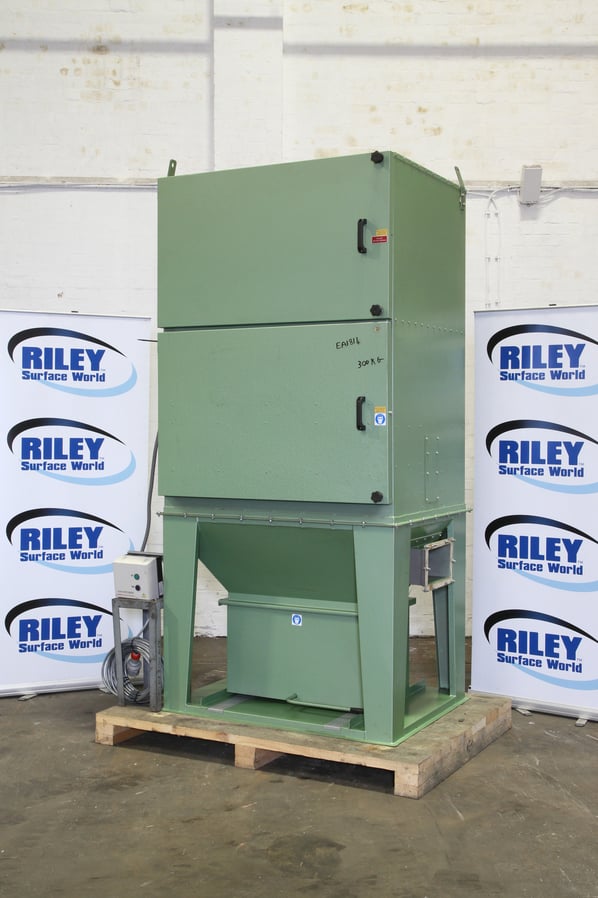

Filtex Self Contained FX250 Dry Dust Extraction Unit.

Stock No
EA1814
Manufacturer
Filtex
Model
FX250
Year of Manufacture
2014
Serial
11610
Condition
Good Condition
Approx Duty CFM / M³/Hr
2000 / 4000M3
Filter Area ft² / m²
250 / 25M2
Other Info
5.5kW / 7.5 Hp
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
300
External Dimensions (WxDxH mm) [?]
1420 x 970 x 2570

Description

The FX 250 range are self-contained, high efficiency, envelope type units of compact design. They incorporate fan, motor and filter assemblies with mechanically operated shaking mechanisms

This second hand FX 250 is an extremely versatile fine dust filter, capable of handling numerous dust types over a wide range of applications.

The FX 250 range are self-contained, high efficiency, envelope type units of compact design. They incorporate fan, motor and filter assemblies with mechanically operated shaking mechanisms and are designed to accept combinations of fan volume/cloth area to meet the varying applications in industry.

Full width hinged access doors, with quick release fasteners, provide easy inspection or removal of fan, motor or filter.

This unit has been produced with the additional features of a pre-separation chamber to help separate light dust from the air-stream before they make contact with the filter bags.

The shaker control when activated will stop the fan motor and allow it to come to rest before starting up the shaker motor which will run for between 30 and 60 seconds dependent on the timer setting.

The FX filter performance enables the recirculation (in some circumstance) of filtered air back into the process area, promoting cost savings through energy efficiency by the return of treated air.

Technical specifications:

FX 250

  • Capacity 2000cfm @ 7" swg // 4000m³/hr @178mm
  • Fan size 5.5kW / 7.5Hp
  • Bin capacity 4.6Cu. Ft // 130l
  • Silencer resulting in noise level of 76dB(A)
  • Overall dimensions 1420 x 970 x 2570mm
  • Weight 415kg
  • Auto shaker controller.


The above design duties are based on an 8:1 cloth to air ratio. Polyester needlefelt filter media is included as standard throughout our range. Other filter medias are available.

pdf icon Print / Download Filtex Self Contained FX250 Dry Dust Extraction Unit. Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
