Machines & equipment for sale

Filtered Galvanized Wash Down Booth

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
GA828
Model
Manual Spray Wash Booth
Year of Manufacture
2001
Serial
N/A
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
Fan Capacity 3M3/ Sec (6,356CFM)
Filter Area ft² / m²
3 x 595 x 595 x 47 panel filters
Other Info
Working Size 1960 x 1900 x 1660
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
2200 x 2000 x 3500
Delivery
Your delivery options

Description

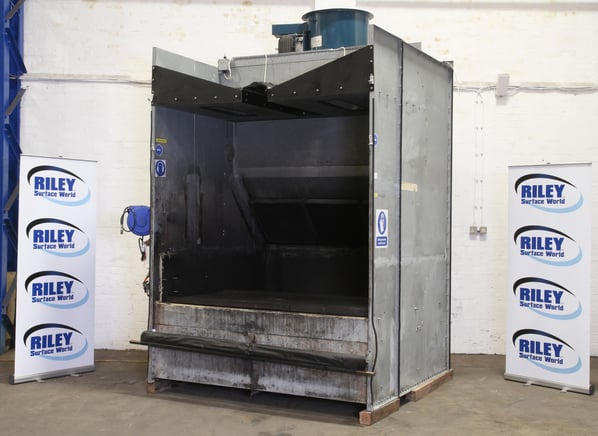

A wash down booth with built in extraction and lighting.

Former Rolls Royce Machinery

This plant is one of several machines acquired during Rolls Royce's reorganisation of their manufacturing facility at Inchinnan, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality engine components,
but can provide a benefit to any industry.

Operation

Manually spray wash any items within the enclosed booth, powerful extraction system removes potentially hazardous mists and vapors when vented to a suitable ducting system.

  • Originally designed to be used with kerosene but is capable of being used with a variety of none hazardous cleaning media.
  • Pneumatically activated spray wash.
  • Galvanized steel construction.
  • Internal lighting.
  • Central roof access to allow for crane supported loading.
  • Grating support for floor standing loads.
  • RHF roof mounted axial extraction fan, 2.2 kW,  1400 rev/min motor.
  • Filter pads mounted to rear wall.
  • Adjustable lower front screen.
  • Tank Capacity=1760.
  • Electrical stop / start.
  • Option to fit a sump heater to improve the process.



pdf icon Print / Download Filtered Galvanized Wash Down Booth Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
