Machines & equipment for sale

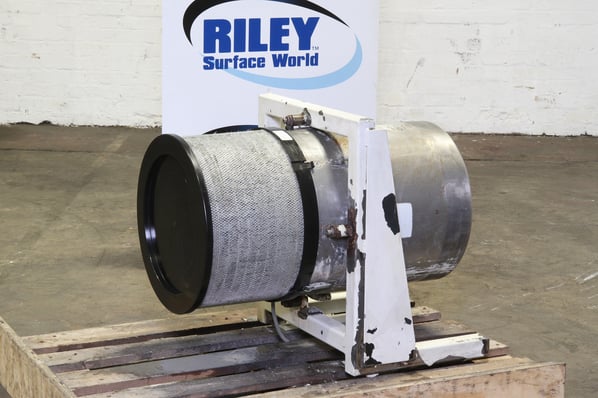

Filtermist Steam Extraction, Condensate Recycling and Oil Separation Unit

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Current Model
Stock No
EA1811
Manufacturer
Filtermist
Model
FX7002
Condition
From a working environment, Current Model
Approx Duty CFM / M³/Hr
1600 CFM / 2750M3/Hr
Filter Area ft² / m²
Primary and secondary filters.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
60
External Dimensions (WxDxH mm) [?]
570 x 820 high

Description

Filtermist have long been established as the market leaders in the field of extraction of saturated air streams. They provide the most advanced and effective system available for the removal of mists.


How Filtermist Works


The units are used in a wide range of manufacturing, engineering and processing applications. These include automotive and aerospace through to the chemical and food sectors. The body of the unit contains impingement paddles that centrifuge the saturated air against the condensing wall to effectively remove the droplet from the air and return the liquid to source for reuse.

A large range of applications


Filtermist units are in use around the World in virtually all types of machining operations and industrial sectors, including: general machining; spark eroding; grinding; turning; food spraying and industrial washing processes.

Features of the Filtermist Range

Oil and water mists removed at source.
Used in machining processes in most industrial sectors.
Quiet operation combined with high performance.
Energy efficient.

Technical details

  • 2.2kw fan unit
  • 240 / 415 Volts
  • 50 Hz
  • 2750M³/Hr
  • Ø 198 mm inlet
  • Ø 19 mm drain outlet.
  • Including after filter.

pdf icon Print / Download Filtermist Steam Extraction, Condensate Recycling and Oil Separation Unit Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
