Machines & equipment for sale

W Canning Model 2577 3+3hp 3000rpm Double Ended Heavy Duty Polishing Lathe

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
From a working environment, Seen working by RSW, Good Condition
Stock No
PA1137
Manufacturer
W Canning
Model
2577
Year of Manufacture
Ref: 2015
Serial
A11665
Condition
From a working environment, Seen working by RSW, Good Condition
R.P.M.
2850
Hp/Kw
2.2
Other Info
Drive DC Braking System
Location
Rolls Royce stores, near Derby, UK
External Dimensions (WxDxH mm) [?]
1780 x 700 x 2150

Description

W. Canning Model 2577 3+3hp 3000rpm Double Ended Heavy Duty Polisher

This traditionally built second-hand Canning model 2577 Polishing machine is predominately used with polishing mops. buffs and bobs but can also be used with a wide range of rotary abrasive tools, ie abrasive impregnated nylon wheels, abrasive brushes, flap wheels, deburring wheels, and flap wheels, etc

Former Rolls Royce Machinery

This plant is one of several machines acquired during Rolls Royce's reorganisation of their manufacturing facility at Inchinnan, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality engine components,
but can provide a benefit to any industry.




The model 2577 is equipped with 4 heavy-duty bearings per end offering for long life, double-ended spindle ends with independent variable speed high torque motors for flexibility.
The advantage gained by having a variable speed drive is that lower temperature stable materials can be processed such as plastics and acrylics and larger diameter mops used without scorching by reducing the actual surface speed of the wheels.

The unit is in excellent condition and was previously used for processing Titanium products

FEATURES

  • Motor size: Twin 3hp / 2.2KW Independently started dual motors.
  • Fully Guarded
  • Floor mounted dust control hoods each end
  • Run/Jog modes
  • Panel control for independent extraction (not supplied)
  • Operator spotlight
  • Driveloc DC electronic brake each end
  • Additional emergency stops foot and hand actuated
  • Heavy-duty 4 bearing spindles
  • Contact wheel/buff (not included) diameters: 250 mm with taper spindle ends or 350mm with parallel ends

pdf icon Print / Download W Canning Model 2577 3+3hp 3000rpm Double Ended Heavy Duty Polishing Lathe Datasheet

Additional files

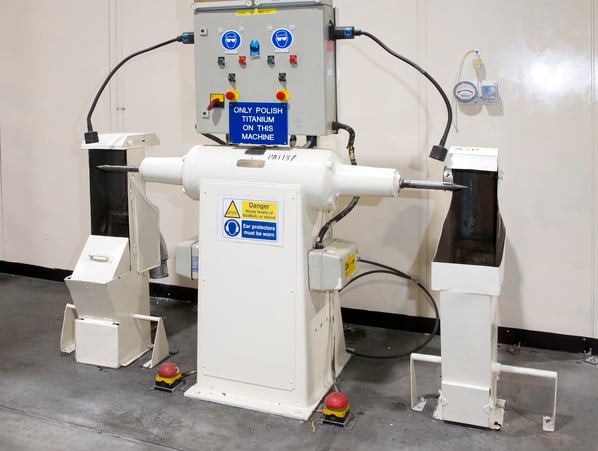

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
