Machines & equipment for sale

Hedinair Electric Stand Mounted Air Circulated Treatments Oven

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
OA2170
Manufacturer
Hedinair
Model
18149
Condition
From a working environment, Good Condition
Internal Size (WxDxH mm) [?]
600 x 680 x 560
Max Temp
200°c
Other Info
4.6kW 1ph 19.7amp
Location
Rolls Royce stores, near Derby, UK
External Dimensions (WxDxH mm) [?]
900 x 1180 x 1740

Description

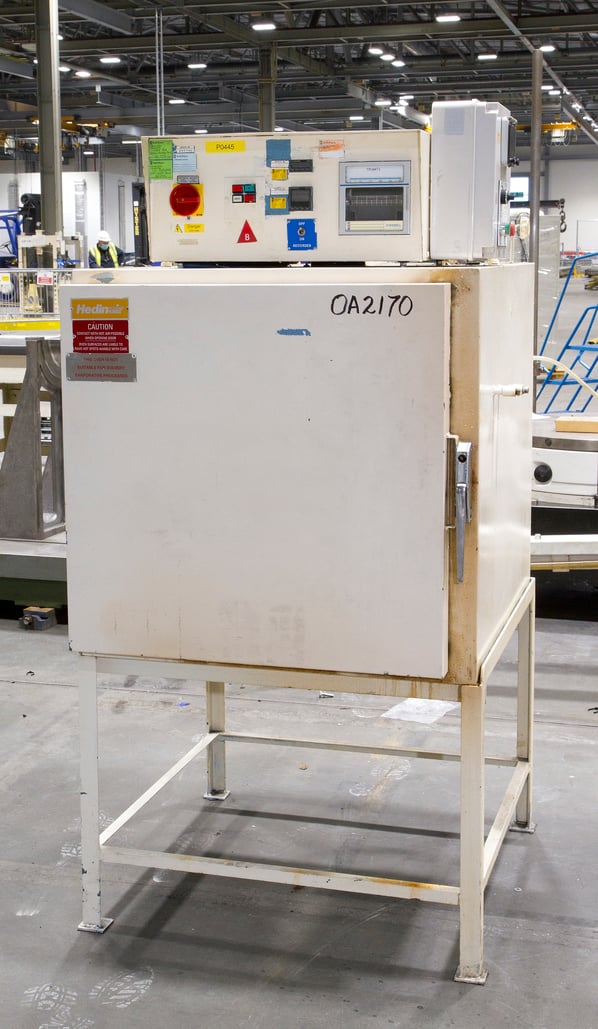

Hedinair Electric Stand Mounted Air Circulated Treatments Oven

A second hand Hedinair Hotline Oven - This Electric Small Capacity Batch Oven is suitable
for all types of production work including heavy loads.

Ideal for varnish baking, paint stoving, rubber curing, resin bonding, and mould pre-heating.

Former Rolls Royce Machinery

This plant is one of several machines acquired during Rolls Royce's reorganisation of their manufacturing facility at Inchinnan, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality engine components,
but can provide a benefit to any industry.



.

  • The Control panel is roof-mounted for space-saving, with simple red/green on/off buttons and set and display temp controller
  • Maximum Temp - 200 Degree Celsius
  • Eurotherm 2216 & 2132i controlling operating temperature and over-temperature functions
  • Chessell chart recorder with on/off duty switch
  • 4KW (Kilowatts) of split load heaters installed
  • Rear Mounted fan for even hot air distribution within the heating chamber during processing.
  • Single robustly constructed locking door.
  • Stand mounted

Ideally suited to low-temperature thermal treatments such as stress relieving, de-embrittling, tempering.

Alternative applications being the pre-heating of ferrous/non-ferrous/plastic/wood/glass substrates or curing/stoving suitable coatings.

This would make an excellent addition for those processing small batches/sample runs in a production or laboratory environment.

Electrical information
240v / 1ph / 50Hz / 4kw / 18A









pdf icon Print / Download Hedinair Electric Stand Mounted Air Circulated Treatments Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
