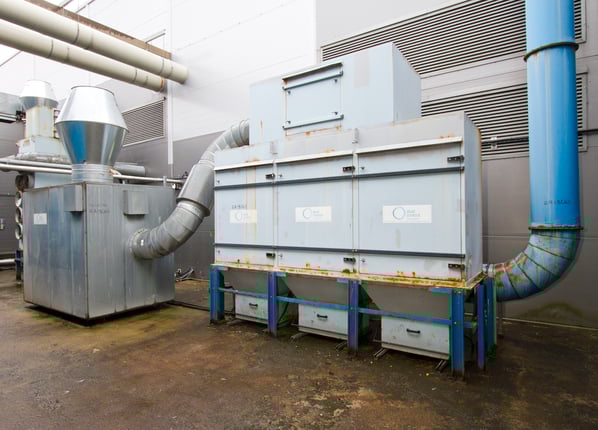

Heaton Green Model 96/18.5kw Baghouse Outdoor Dust Control Plant

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 6,750 (+ VAT)
Clearance ends
04 March 2021 14:00 GMT while stocks last
Decommissioning,
Moving & Loading Contribution [?]
£ 775 (+ VAT) will be added to your invoice
Part of a Direct Site Clearance
Quality Dust Extraction Plants
Condition
From a working environment, Good Condition
Location
Inchinnan, UK
Buy Now Add to Quote Book Appointment
Stock No
EA1806S
Manufacturer
Heaton Green
Model
96
Year of Manufacture
Ref. 2015
Serial
03191 8006
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
6500 // 11,750
Filter Area ft² / m²
960 // 96
Other Info
18.5 kw // 25 hp
Location
Inchinnan, UK
Weight (kgs)
1200
External Dimensions (WxDxH mm) [?]
3500 x 1800 x 3370

Description

Heaton Green Baghouse dust collector

Suitable for various applications that generate light to medium volumes of dry dust

A workhorse in dust control terms and an ideal cost effective solution to those everyday, intermittent dust control extraction problems.

The Heaton Green baghouse dust collector is a robust simple mechanically cleaned bag dust collector, suitable for non-continuous duty for industrial, commercial, and educational locations.  The dust collector is neat, compact, unobtrusive and it is easy to clean the exterior and has a robust weatherproof welded steel construction.

Former Rolls Royce Machinery

This plant is one of several machines acquired during Rolls Royce's reorganisation of their manufacturing facility at Inchinnan, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality engine components,
but can provide a benefit to any industry.

Features

  • Externally installed extractor, maximising workspace and minimising noise in the working environment
  • Triple FIKE explosion panels. with burst sensors
  • 18.5kW fan set
  •  Weatherproof for location anywhere.
  • Clean air side maintenance to make bag changing and servicing a healthier task.
  • Secondary filter for safe air return to the work area
  • Pre-wired fan and shaker motors to speed installation.
  • Combination of filter bag design and efficient top mounted shaker ensures quick efficient cleaning and maximum bag life.
  • No need for compressed air.
  • Flap valve discharge system
  • Fan is enclosed in a soundproof cabin, with a fitted silencer for noise reduction.
  • High Velocity Chimney

Technical Parameters:

● Maximum working temperature 100ºC
● Wide range of filter materials to suit most applications
● Separate, high-efficiency 18.5kW fan set mounted with a soundproof enclosure with a silencer
● Triple inlet ducts 600 x 150 mm, Inlet ducting 450mm
● All electrical connections pre-wired to the terminal box on the side of the unit

Build design:

The filter body, with full width opening front access doors are fitted with a multi vee-pocket filter bag secured by a clamping frame at its lower end. The upper end of the bag is suspended from a frame, which can pivot about its central axis. This is in turn linked by a connecting rod to the shaker drive motors, robustly located on the unit top, below the silencer enclosure.

The filter body is mounted on the pre-separation section which in turn is on top of the steel hoppers. The hopper is fitted with a quick-release flap valve or waste removal.

A mounted controller unit, which can also be used remotely if so desired, is supplied with the starter for the fan and a built-in timed sequence to operate the shaker mechanism.

Operation

During normal operation

1. During normal operation, the dust-laden air from the plant travels down the supply duct

2. The standard baffle is mounted at the inlet of the filter to break up the airflow and direct the dust downward into the hopper section while protecting the filter media from abrasive dust.

3. The lighter dust collects on the inside of the envelope bag as clean air passes through. Finally, the clean air travels through the air handling fan where it could be returned to the plant or exhausted outdoors.

4. The heavier dust settles in the hopper section where it can be discharged into the metal bins.

Cleaning

1. Each time the filter unit is turned off, there is a 2-minute delay and then the automatic timer activates the shaker cleaning.

2. The shaft of the shaker motor is attached to a simple cam which, in turn, is attached to the shaking mechanism.

The shaking mechanism pivots vigorously from side to side which causes the dust to break free

from the inside of the filter bag.

3. The dust then falls into the quick release metal bins located at the bottom of the filter unit.



pdf icon Print / Download Heaton Green Model 96/18.5kw Baghouse Outdoor Dust Control Plant Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
