Donaldson Torit (DCE) Cartridge Type Dust Control Plant with Separate Floor Mounted Centrifugal Extraction Fan

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EA1802S
Manufacturer
Donaldson Torit (DCE)
Model
2 DFP 6R
Year of Manufacture
Ref. 2015
Serial
5310 1212
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
3500 // 6000
Other Info
11kW
Location
Rolls Royce stores, near Derby, UK
Weight (kgs)
600
External Dimensions (WxDxH mm) [?]
1620 x 1700 x 2530

Description

Former Rolls Royce Machinery

This plant is one of several machines acquired during Rolls Royce's reorganisation of their manufacturing facility at Inchinnan, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality engine components,
but can provide a benefit to any industry.

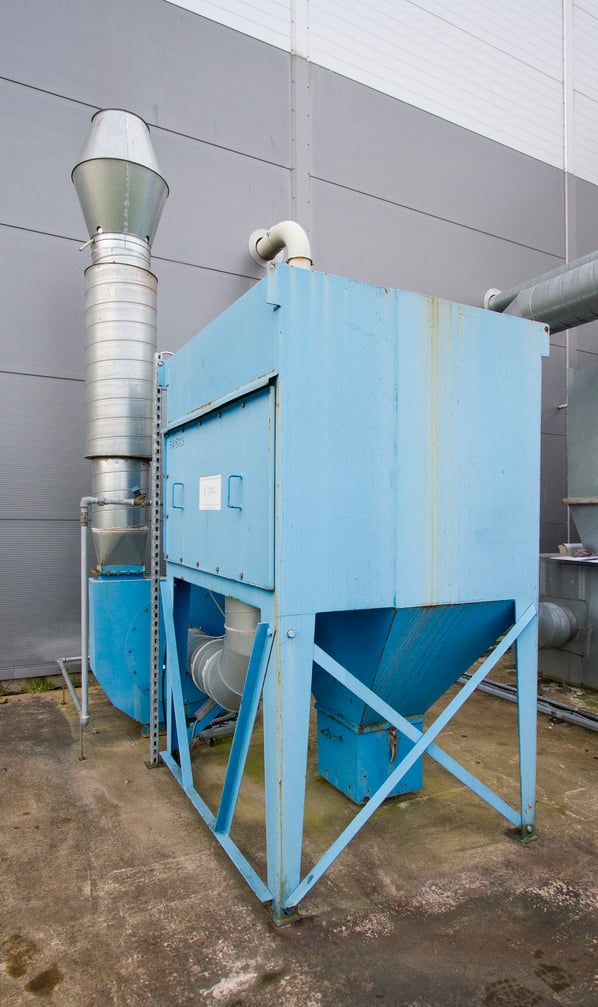

Cartridge Type Dust Control Plant with Separate Floor Mounted Centrifugal Extraction Fan

The dust collector is used for the collection of airborne dust and particulate. Whether in answer to the problem of air pollution, or as part of a manufacturing process, this dust collector provides highly efficient, continuous, on-line dust collection.

The Ultra-Web filter elements are the heart of this dust collector. These filter elements help ensure that only clean air is returned to the plant environment.

During normal operation, contaminated air enters the dust collector through the top inlet area and passes down and through the filter elements. Dust is collected on the outside surface of the filter elements.

The clean, filtered air flows through the centre of the filter elements into the clean air plenum, where it exits through the clean air outlet.

Filter elements are cleaned automatically and sequentially. The result is that only one filter element may be off-line for cleaning at any given time.

During the filter cleaning purge, the solid state timer energises a solenoid valve, causing the corresponding diaphragm valve to send a pulse of compressed air through the filter (from the inside outward), removing the collected contaminants from the outside surfaces of the filter. The dust falls into the hopper and then into the dust storage container.

Please note: This dust collector has ATEX rated explosion relief panels.

Timer Control
S/N 1A31599361
230v in 24v out

Separate Fan Unit
Dimensions: 900 x 1130 x 1100 plus exhaust stack 3100 mm







pdf icon Print / Download Donaldson Torit (DCE) Cartridge Type Dust Control Plant with Separate Floor Mounted Centrifugal Extraction Fan Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
