Carter Environmental Model 170 EHS HA 30kw Wet Type Dust Control Air Scrubber

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 6,750 (+ VAT)
Clearance ends
04 March 2021 14:00 GMT while stocks last
Decommissioning,
Moving & Loading Contribution [?]
£ 775 (+ VAT) will be added to your invoice
Part of a Direct Site Clearance
Quality Dust Extraction Plants
Condition
From a working environment, Good Condition
Location
Inchinnan, UK
Buy Now Add to Quote Book Appointment
Stock No
EA1798S
Manufacturer
Carter Environmental
Model
170EHS HA
Year of Manufacture
Ref. 2015
Serial
10043- A
Condition
From a working environment, Good Condition
Other Info
30 kw / 40hp
Location
Inchinnan, UK
External Dimensions (WxDxH mm) [?]
4030 x 1400 x 2500

Description

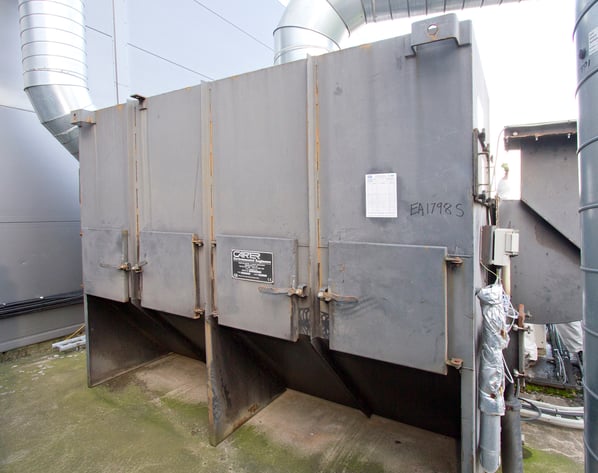

Carter Environmental Model 170 EHS HA Wet Type Dust Extractor

Carter-Midac EHS wet dust collectors are designed to cater for those applications where potentially explosive dusts such as aluminium and magnesium and other potentially hazardous applications.

Former Rolls Royce Machinery

This plant is one of several machines acquired during Rolls Royce's reorganisation of their manufacturing facility at Inchinnan, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality engine components,
but can provide a benefit to any industry.

Works by drawing the contaminated air through a linear spray generator baffle, which is designed to

a) Generate an intense self induced spray zone.

b) Impose a series of about turns on the airflow so that the dust particles are centrifuged at high velocity onto the walls of the baffle which are continuously irrigated by the water spray.

c) Facilitate collisions between water droplets and dust particles in the spray zone.

d) Create a final water curtain through which the air must pass before leaving the baffle system.

By these means, a very high percentage of the dust particles are trapped in the water which drains back into the bottom tank of the collector. The dust eventually settles out and accumulates at the base of the tank as a sludge prior to being manually raked up the inclined side of the bottom tank and removed from the collector when the plant ceases working.

After negotiating the baffle system, the air passes through the spray eliminators which remove entrained water droplets before the air is discharged from the unit via the fan.

 Electronic water controls are provided to maintain the correct working level in the unit to ensure efficient collection. On explosion or fire risk applications these controls are augmented to provide additional safeguards against continuing plant operation with collector malfunction.

Included in the arrangement explosion relief panels and a fully integrated monitoring system

Numerous access doors provide full facilities for easy inspection and maintenance. A drain valve is fitted so that the collector may be emptied for more complete inspection and cleaning.

A Self-induced spray wet collector powered by a powerful 30kW fan, providing high-efficiency levels up to 99%

This machine has been specifically designed for hazardous applications and was originally designed to extract and remove highly flammable  magnesium dust particles

Plant Information

  1. ST1 Rated Explosion relief panel
  2. 4.0 kW immersion heater
  3. CEC3 Water Controller
  4. Water supply connection 1" BSP
  5. Inlet Ducting - Inlet size 900 x 250mm
  6. Roof mounted explosion relief
  7. Woodcheck fan in acoustic enclosure
  8. High velocity exhaust chimney
  9. White metal explosive dust precision water level control

Note:

Refurbished in March 2015 which included a new 30Kw fan manufactured by Woodcock Wilson Limited.

Type SW51 BFZ 970 100-98S/N W21973-3
Date: March 2015
30Kw 400x 3ph 50hz

Dims:1800 x 1950 x 3600





pdf icon Print / Download Carter Environmental Model 170 EHS HA 30kw Wet Type Dust Control Air Scrubber Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
