Machines & equipment for sale

Donaldson Torit (DCE) UMA 253 G8 Unimaster Dry Dust Control Plant

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
From a working environment, Seen working by RSW, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EA1793
Manufacturer
Donaldson Torit (DCE)
Model
UMA 253 G8
Year of Manufacture
1999
Serial
661 719
Condition
From a working environment, Seen working by RSW, Good Condition
Approx Duty CFM / M³/Hr
1750 // 3000
Filter Area ft² / m²
250 / 25
Other Info
ATEX panel Hepa Explosion relief.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
471
External Dimensions (WxDxH mm) [?]
1500 x 920 x 3100

Description

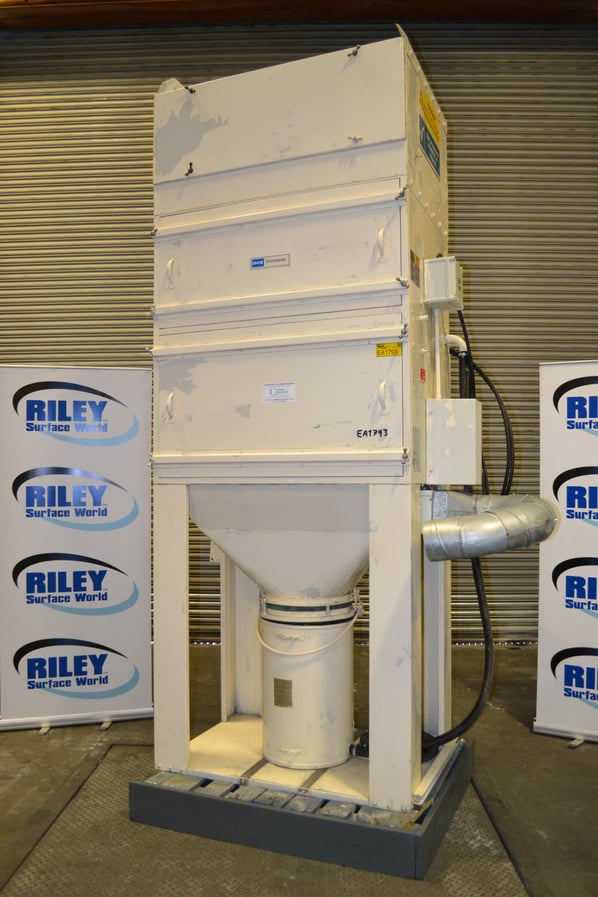

Donaldson Torit DCE Unimaster UMA 253 G8 dust extraction unit

The UMA 253 G8 is a compact, self-contained fabric filter dust control unit complete with a 5.5 kW // 7.5hp fan, self-cleaning mechanism, explosion relief panel, easy-access filter assembly, & a 3 cubic foot waste container bucket with quick-release sealer gear

Former Rolls Royce Machinery

This plant is one of several machines acquired during Rolls Royce's reorganisation of their manufacturing facility at Inchinnan, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality engine components,
but can provide a benefit to any industry.

Design features

  • Hepa Filter
  • Compact Design
  • Minimises floor space and fits in virtually any plant layout.
  • Versatility
  • To suit a variety of dust collection applications
  •  Quiet & Efficient Operation
  • Motor and fan are enclosed in collector housing to minimise noise.
  • Large 3 ft3 collection bucket
  • Fike Explosion relief panel
  • Allows for the use with potentially explosive dust covered under the ATEX regulations
  • Quick-Release Lever mechanism
  • Allows for easy removal and maintenance of waste storage bin
  • Extra-large Silencer box, thus reducing noise levels in the environment.
  • Inlet Deflector Knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • Heavy-duty flexible metal inner bag coils Inserted into filter bags which keeps the bag envelopes open to maximize airflow and assist in knocking dust off during the cleaning cycle.
  • Bag-Release Screws

pdf icon Print / Download Donaldson Torit (DCE) UMA 253 G8 Unimaster Dry Dust Control Plant Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
