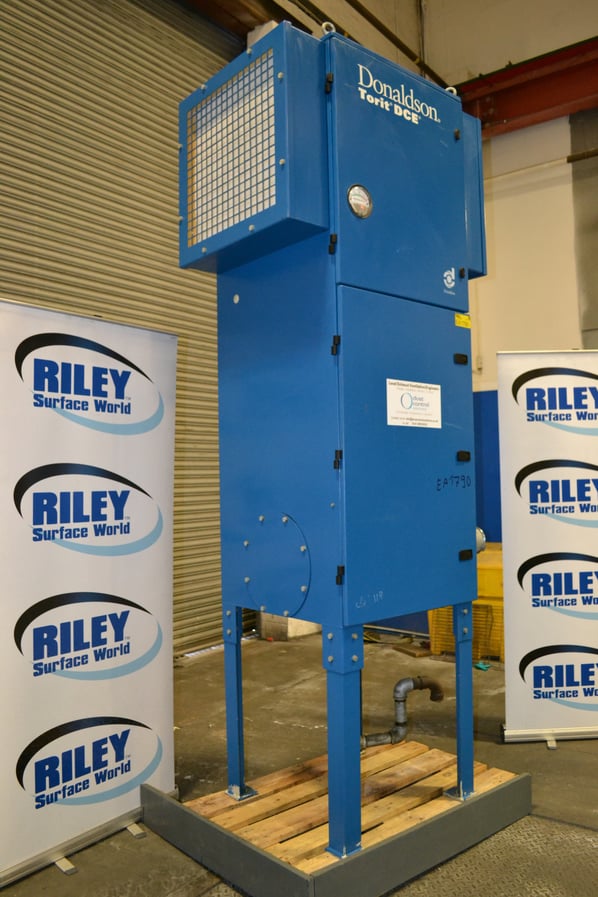

Donaldson Torit (DCE) DMC-01 Oil Mist Cartridge Air Extraction Unit with Removable Articulated Arm

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EA1790
Manufacturer
Donaldson Torit (DCE)
Model
DMC-01
Year of Manufacture
2003
Serial
54101348
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
1070 //1810 M3/hr
Filter Area ft² / m²
220 / 20.4
Other Info
Multi-phase Extraction Unit
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
375
External Dimensions (WxDxH mm) [?]
1300 x 750 x 2900 mm

Description

DonaldsonTorit  DMC-01 Dryflow Mist Collector

The Donaldson Torit Dryflo DMC-01 Oil Mist collector is one of the most effective and efficient mist filtration solutions and is ideal for removing water-soluble and synthetic coolant mists and other industrial processes

Former Rolls Royce Machinery

This plant is one of several machines acquired during Rolls Royce's reorganisation of their manufacturing facility at Inchinnan, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality engine components,
but can provide a benefit to any industry.

Powered by a powerful 2.2kw 3hp motor and fan, the mist and fumes are extracted from the workplace to this single filter dust extraction unit which uses a 3 stage filtration system.

Stage 1
Prefilter element removes large droplets, metal dust, and swarf.

Stage 2
A three-layer synthetic wrap turns small mist particles into droplets

The filter media is made a proven, highly effective proprietary synthetic media incorporating both small and large fibres for optimum filtration. The smaller fibres provide increased filtration efficiency; after the mist is captured and coalesced, the larger fibres allow the oil to drain from the filter.

Stage 3
A HEPA filter Collects any remaining fine mist particles, coalesces them again to droplets, and returns them to the collection hopper.

Advantages

  • Higher collection efficiency
  • Cleaner, more pleasant work environment
  • Reduced risk of mist-related hazards
  • Faster, easier collector maintenance
  • Lower plant maintenance costs
  • Quick and easy filter changes


* Also supplied with this machine is an articulated extraction arm some 4000mm in length and 120mm diameter ducting size.

Note: This item is detachable from the unit.

  • Height including arm 1570 mm
  • Manoeuvrable Suction Arm

pdf icon Print / Download Donaldson Torit (DCE) DMC-01 Oil Mist Cartridge Air Extraction Unit with Removable Articulated Arm Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
