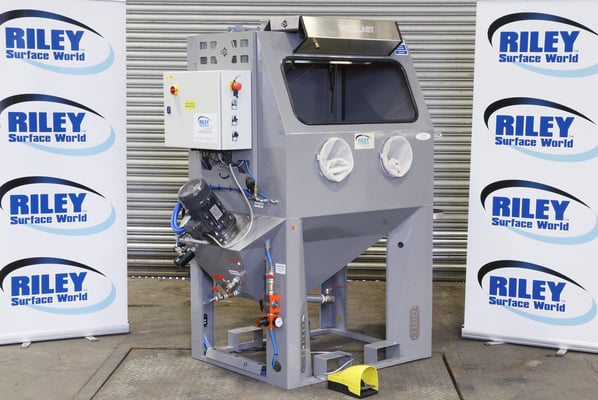

Riley 1100 Heavy Duty Stainless Steel Wet Blast Cabinet


From just £226.67 a month
Finance available 4 years at 3.63% flat rate and VAT value as a deposit.
Terms & Conditions Apply [?]
- Stock No
- SZ910
- Manufacturer
- Riley
- Model
- 1100
- Year of Manufacture
- 2020
- Condition
- Brand New, Current Model
- Work Envelope (WxDxH mm) [?]
- 1080 x 880 x 950
- Work Handling Method
- Manual
- Other Info
- 5 Year Cabinet Warranty
- Location
- Arriving in our warehouse soon
- Weight (kgs)
- 260Kgs
- External Dimensions (WxDxH mm) [?]
- 1500 x 950 x 1880
Description
Riley "Wet Blast" Wet Blasting Cabinet Range
Our range of wet blasting machines is designed to simultaneously degrease and blast multiple components.
The process cleans by flow, and not impact, producing a 'soft' finish. The water acts as a lubricant, avoiding media impregnation and also extending the life of the blast media.
These are all 304 stainless steel constructed blast cabinets with an internally submersed glandless polyurethane pump and tungsten carbide tipped blast nozzle. These features provide extra reliability, life and lower servicing costs.
The pump bodies have been specially designed for minimal wear and longevity, due to the a combination of superior design and materials. They reflect the abrasive away from the surface of he pump thus drastically lengthening the life of the pump body.
In the unlikely event that the pump requires replacement, its price is a fraction of a standard pump.
Typical process is as follows:
- The water/media slurry is contained within the wet blasting cabinet sump.
- Delivery of the slurry to the manual blast nozzle is via a glandless polyurethane pump and associated hose located inside the wet blasting machine.
- Compressed air is added at the blast nozzle to accelerate the slurry and create the cleaning effect.
- After contact with the component, the slurry then drains back into the sump creating a re-circulating system.
Unbeatable Warranty
These blast cabinets include a massive 5 Year warranty on the stainless steel construction.
Electrical, pneumatic and general parts include a 2 year warranty and a 1 year warranty on submersible pump parts.
Features & Benefits
Riley Wet Blast Machines come with an array of standard features
- Constructed from high quality 2mm 304 stainless steel for a longer service life
- Fully powder coated in grey or white for easier cleaning and maintenance and corrosion resistance
- Large front viewing window for excellent operator visibility
- Automatic windscreen wiper and rinse which is activated with the foot pedal
- Four anti-shadow LED lights for operator visibility
- Right hand side door with double media catch trays
- Media recirculating pinch valve to restrict reusable media going to waste
- Door open safety switch for operator safety
- Light weight polyurethane gun
- Tungsten carbide blast nozzle
- Component wash off gun for a quick and easy rinse
- Air blow off gun to dry off components
- Heavy duty rubber gauntlets for operator comfort and safety
- Pressure regulator with gauge for fine adjustment to blasting pressure
- Easy reach control panel with large emergency stop button
- Side mounted pump (1100 & 1250) to allow cabinet to be placed back against the wall
- Valve regulator mounted outside the leg to make maintenance and diagnosis easier
- Plastic sedimentation tank
- 3Kw thermostatically controlled sump heater to aid de-greasing with ON/OFF switch
- 2.2kW media blast pump mounted directly into the sump
Service requirements
- Electrical supply 415v 3 Phase + Neutral
- Air supply 7 bar (100psi @ 40cfm)
- Air operating range 2-6 bar (30-80psi)
- Water Supply 1/2" BSP
- Drain Floor Level Approx 10 Litres/min
- Ventilation 4" / 110mm Duct to outside atmosphere.
Print / Download Riley 1100 Heavy Duty Stainless Steel Wet Blast Cabinet Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
