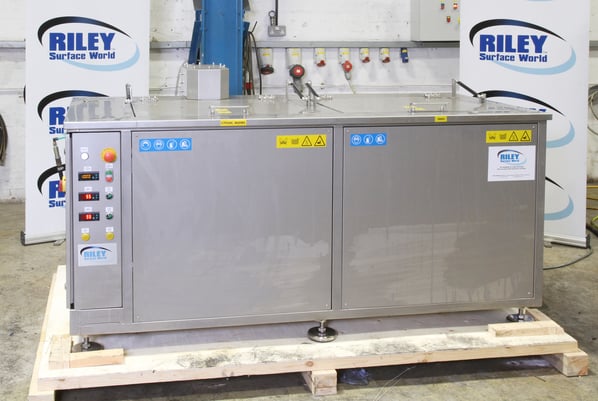

Riley Multiclean, 120Ltr - 2-Stage, Ultrasonic Wash and Rinse Machine

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability:
In stock now
Condition
Brand New, Current Model

From just £237.41 a month

Finance available 4 years at 3.63% flat rate and VAT value as a deposit.
Terms & Conditions Apply [?]

Get a Quote >

Stock No
DZ1385
Manufacturer
Riley
Model
Multiclean 2-120
Year of Manufacture
2020
Serial
210003
Condition
Brand New, Current Model
Work Envelope (WxDxH mm) [?]
670 x 540 x 450
Process Stages
2 Stages, Ultrasonic wash and rinse
Weight (kgs)
356
External Dimensions (WxDxH mm) [?]
2030 x 1250 x 1120

Description

This Riley Multiclean Ultrasonic wash machine features an ultrasonic washing cycle followed by a rinsing cycle. Both stages are heated.



PROCESS SUMMARY

TANK 1

  • Ultrasonic Washing
  • Tank size mm (LxWxD)  670 x 540 x 540
  • Basket size mm (LxWxD)  560 x 450 x 350
  • ULTRASONIC 1250W Floor Mounted Transducer Box, 28kHz Frequency
  • HEATERS <80⁰C – 6.4kW Electric Heaters
  • DRAIN 1” Diameter Manual Ball Valve
  • WATER INLET Cascade Overflow from Tank 2

TANK 2

  • Rinsing
  • Tank size mm (LxWxD)  670 x 540 x 540
  • Basket size mm (LxWxD)  560 x 450 x 350
  • HEATERS <80⁰C – 6.4kW Electric Heaters
  • DRAIN 1” Diameter Manual Ball Valve
  • WATER INLET ½” Diameter Manual Ball Valve

CONSTRUCTION

  • The MultiClean 2-120 two staged washing system’s whole superstructure will be supported by a stainless-steel rigid box section frame, this frame will greatly increase the strength and load carrying capacity of the washing system. The entire washing system will be constructed from high quality grade 304 stainless steel inside and out meaning all surfaces in contact with water are stainless steel.
  • TANKS : AISI 304 Stainless Steel, 2.0mm thickness.
  • COVER PANELS : AISI 304 Stainless Steel, 1.0mm thickness
  • FRAME : AISI 304 Stainless Steel, 40*60*2.0mm
  • PIPING & FITTINGS : AISI 304 Stainless Steel
  • ULTRASONIC TRANSDUCER BOX : AISI 316L Stainless Steel, 2.0mm thickness

HEAT INSULATION

  • The MultiClean 2-120 washing system will have 20mm thick thermal insulation installed on all heated fluid and drying tanks providing total thermal insulation. Insulation material will be made from industrial grade glass wool which provides excellent insulation performance. With insulation fitted to all heated tanks this aids in heat retention and provide significant savings due to lower energy consumption.

TANK HEATERS

  • The MultiClean 2-120 washing system’s heated fluid tanks will be heated by externally tank bonded silicone rubber heaters for the fluid tanks as standard. The bonded heaters will be regulated by digital thermostat control units with digital readout/display. Liquid tank temperature is ambient up to 80°C. .

ELECTRICAL CONTROL PANEL

  • An IP54 rated machine mounted control panel will be provided to house all the washing system’s control and other relevant control gear such as lights, switches, contactors and fuses. The control panel is positioned on the left hand side of the washing system and will come complete with the following control features.
  • Fluid heaters on/off
  • Fluid temperature controllers
  • Ultrasonic washing timer controller
  • Rinsing timer controller
  • Low fluid level indicator light
  • Mains power on light

UTILITY REQUIREMENTS

  • Mains Electric : Three phase + neutral + earth, 380-400 volts, 50Hz.
  • Mains Water Inlet : Via one ½” BSP manual ball valves.
  • Mains Water Outlet : Via two 1” BSP manual ball valves.

SYSTEM COMPLIANCE

  • The washing system will be risk assessed and CE marked as required by current European legislation. A CE certificate of conformity will be supplied in the user manual of each washing system. CSA and UL conformity are also available at request and additional cost.

GUARDING

  • All moving parts will be adequately guarded, and an emergency stop button will also be provided on the main electrical control panel.

SAFETY

  • Low fluid level protection for ultrasonic transducer box and electric heaters.

pdf icon Print / Download Riley Multiclean, 120Ltr - 2-Stage, Ultrasonic Wash and Rinse Machine Datasheet
