Machines & equipment for sale

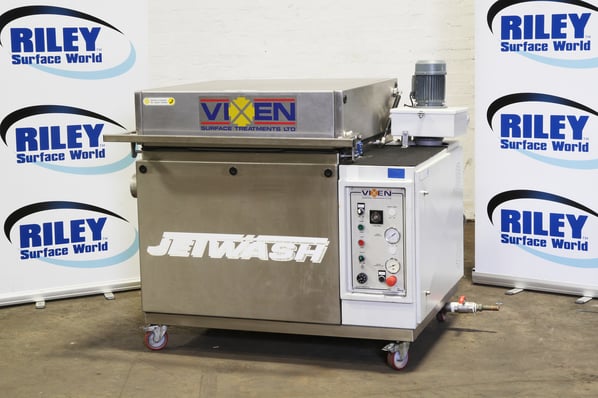

Vixen Surface Treatments Top Loading Stainless Steel Spray Type Jetwash Machine.

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Refurbished by RSW, Excellent Condition, Current Model, Seen powered at RSW
Stock No
DZ1383
Manufacturer
Vixen Surface Treatments
Model
JW60
Year of Manufacture
2009
Serial
2242
Condition
Refurbished by RSW, Excellent Condition, Current Model, Seen powered at RSW
Work Envelope (WxDxH mm) [?]
600 Ø x 400mm
Process Stages
Single Spray Wash
Other Info
All wetted surfaces are stainless steel
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
324 Kgs
External Dimensions (WxDxH mm) [?]
1400 x 1200 x 1250 (Lid Closed)

Description

The Jetwash JW60 is a fully stainless lined, hot wash spray machine using water and environmentally friendly detergents.

Construction

The machine is of double skin construction with an 18mm cavity insulation giving maximum insulation to the hot water and extremely strong build rigidity.

Operation

Designed to automatically wash/degrease a wide variety of components. Just load the basket, close the lid and press start.
The cycle is adjustable and resets automatically each time the lid is opened. The wash basket remains stationary while the spray boom revolves around it. This means that the delicate components will not get damaged by movement. Over 150 litres of water are sprayed every minute.
This water returns to the tank and is filtered to remove debris in the debris filter basket. The components are cleaned and flash dried in seconds.
Another optional feature fitted to this machine is a powered steam extraction fan to pull the steam and condense away from the operator as he opens the lid.

External dimensions: 1400 x 1200 x 1800mm h when the lid is open

Standard Features:

  • 600mm Ø x 400mm h basket dimensions.
  • Stainless steel interior.
  • Stainless steel exterior.
  • Process timer and temperature selection on front panel.
  • Fitted five pin plug.
  • 100% Drainage facility.
  • Powered steam exhaust.



pdf icon Print / Download Vixen Surface Treatments Top Loading Stainless Steel Spray Type Jetwash Machine. Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
