Machines & equipment for sale

JLS (Redditch) Ltd Industrial 750°C Electric Treatments Oven

Stock No
OZ2147SJ
Manufacturer
JLS (Redditch) Ltd
Model
750°C Batch oven
Year of Manufacture
1999
Serial
99/4647
Condition
From a working environment, Excellent Condition
Internal Size (WxDxH mm) [?]
2900 x 3250 x 2400
Max Temp
750°C
Other Info
Low run Hours of 13,497
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
9100 kg
External Dimensions (WxDxH mm) [?]
4750 x 3800 x 6800 mm

Description

JLS Industrial 750°C Electric Treatments Oven.

JLS vertical powered uprising door electric treatments and curing oven, equipped with dual zone control temperature, twin powerful high volume low pressure air recirculation fans and horizontal air-guides.

This model is designed to provide rapid heating with high thermal transfer to the chamber contents and high uniformity within the chamber.

Standard Features

  • 750°C maximum operating temperature
  • Fast acting vertical powered uprising door
  • Powered exhaust fan
  • Manual rapid cool top vent
  • Explosion relief panel for use with volatile substances
  • Wire elements located in both sides of the chamber
  • Stainless steel lined
  • Low thermal mass insulation.
  • Eurotherm proportional digital programmable temperature and over temperature controllers with chart recorder

Heavy Duty Applications:

  • Composites
  • Aluminum Aging
  • High Temp Coatings
  • Heat Treating
  • And Other Demanding High Uniformity Applications

Features

  • Traditional rugged design of robust construction
  • Air-circulation using twin horizontal axial fans
  • Generous insulation
  • Fitted explosion panels
  • 144 kW of thyristor fired electric heating
  • Temperature range – 50-750°C
  • Exceptional temperature uniformity throughout the working chamber compliant with Nadcap standards

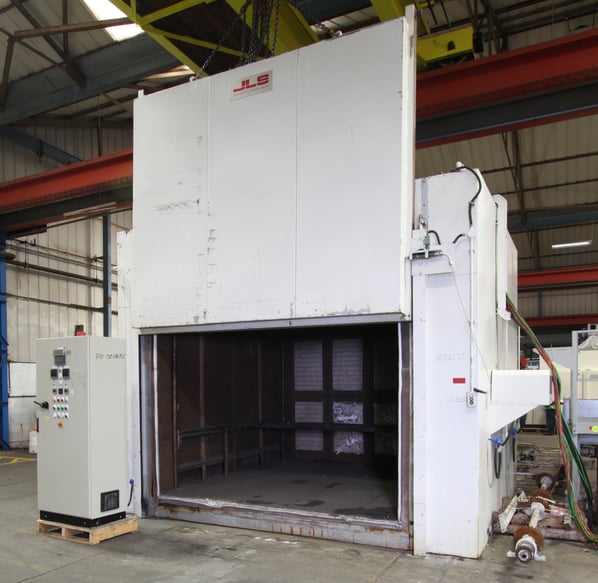

Please note the photographs shown were taken while this oven was at Lufthansa aircraft component and engine repair centre in Rathcoole, Ireland. The oven was sold from there by Riley Surface World to Argosy Control Engineering Limited (ACE Ltd), professionally decommissioned, moved and transported to Aberdeen, Scotland, where it was installed but never commissioned.

pdf icon Print / Download JLS (Redditch) Ltd Industrial 750°C Electric Treatments Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
