Airedale Industrial Process Water Chiller

- Stock No
- CZ609
- Manufacturer
- Airedale
- Model
- DCC016DR-04AJJ0
- Year of Manufacture
- 2015
- Serial
- 82274350-002
- Condition
- From a working environment, Excellent Condition, Current Model
- Ave. cooling capacity
- 175kW
- Ave. Water Flow Rate
- 10.4L/S
- Other Info
- Range 140 to 200kW
- Location
- Our Central Warehouse, Aldridge, UK
- External Dimensions (WxDxH mm) [?]
- 2400 x 2670 x 2400
Description

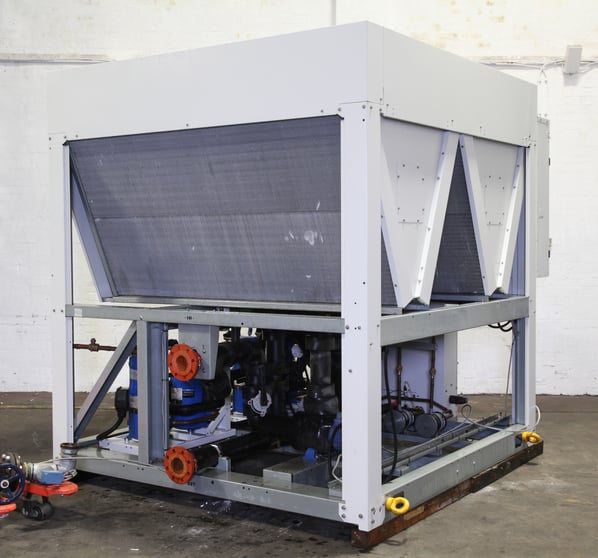

An Airedale, Duel Circuit R410A, air cooled chiller.
Overview
This air cooled R410A scroll chiller offers a free cooling variant and a wide span of cooling capacities from 140 to 200kW. Extremely energy efficient and compact, the DeltaChill™ (DCC) combines quiet, cost effective scroll compressors and the latest fan technology applied in a modular V-frame coil design. In higher capacity models and across all free cooling models, microchannel heat exchangers lift efficiency even higher, whilst still minimising space claim.
Efficiency
- ESEER up to 4.88
- Up to 38% more cooling k W/m² than previous generation compact free cooling chiller
- Free cooling models spend up to 95% of the year in free cooling
- Microchannel coils reduce life cysle costs and reduce footprint
- Total face area 8.4m²
Flexibility
- Dual independent refrigeration circuits allowing 2-9 stages of cooling
- Modula ‘V’-frame coil fan arrangement for improved part load performance and control
- Easy access to components
Quality / Reliability
- Single and standby pumps for resilience
- Large surface area, corrosion-resistant condenser coils for enhanced heat exchange
Features
- Optimised for R410A which only requires a minimum refrigerant charge and has a high heat transfer coefficient
- Low sound ranges: Quiet (R)
- Sequenced scroll compressors minimise sound and allow capacity to more precisely match the application
- Electronic Expansion Valves increase ESEER by 30%
- Optional head pressure set point management achieving optimum EER
- Sickle Bladed Fans.
- Electronic Expansion Valve (EEV)
- Total internal water volume 13.2 Litres.
- Max system water volume 741Litres.
- Max operating pressure 10 Bar.
Print / Download Airedale Industrial Process Water Chiller Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
