Schering Barrel Plating, Twin Tank with Powered Transfer Rotating Barrel.

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition
Stock No
TZ262
Manufacturer
Schering
Model
SN16
Year of Manufacture
1979
Serial
21/152
Condition
Good Condition
Work Envelope (WxDxH mm) [?]
845mm long x 259mm across flats.
Process Stages
2 stage
Other Info
twin tank with transfer
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1650 x 1650 x 1250

Description

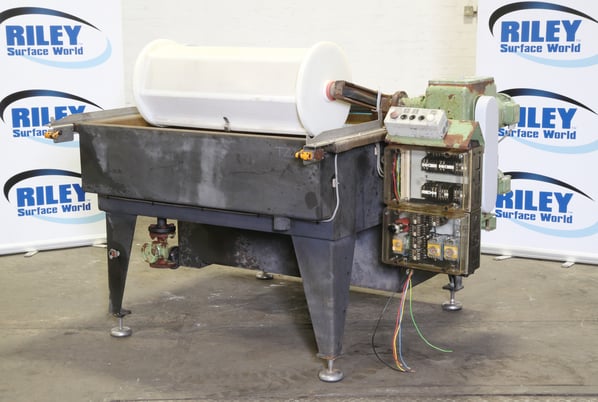

Schering Galvanotechnik Submerged Plating Barrel Unit Type SN 16

A special feature of this most useful barrel plating unit is that the need for a hoist is eliminated. There is a built in motorised mechanism to enable the barrel to be raised and lowered into the plating solution and transferred to the front compartment for loading and unloading.

  • The unit is freestanding, with integral support legs complete with adjustable levelling feet to give a working height of 900mm.
  • The tanks are externally mild steel painted and lined internally with vulcanised hard rubber.
  • There are two separate compartments, the rear one for electroplating/chemical processing and the front one for barrel loading/unloading and product rinsing.
  • The rear compartment has internal dimensions of 1240mm wide x 700mm front to back x 600mm deep. This compartment is fitted with anode rails.
  • The front compartment has internal dimensions of 1240mm wide x 550mm front to back x 300mm deep. This compartment is fitted with a drain facility.
  • The plating/processing barrel is manufactured from high quality polypropylene and has a perforated hexagonal cylinder of internal dimensions 845mm long x 259mm across flats.
  • One side of the cylinder has two off removable lids for ease of loading/unloading.
  • The plating barrel has internal DC dangler contacts connected to an external rail for connection of an external DC power supply (units available from Riley Industries if required).
  • The plating barrel has a ring gear at one end driven by an external electric motor to provide rotation.
  • The plating barrel is mounted on a support arm connected to a motor gearbox to enable raise and lower and movement between compartments.
  • Push button electrical controls are mounted in an enclosure mounted at the side of the unit which also includes, contactors fuses and mains isolator.



pdf icon Print / Download Schering Barrel Plating, Twin Tank with Powered Transfer Rotating Barrel. Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
