Climavent Lakestyle Wet Dust Extraction Unit

Stock No
EZ1778
Manufacturer
Climavent
Model
LW22
Condition
Refurbished by RSW, Excellent Condition
Approx Duty CFM / M³/Hr
2500 / 4250
Filter Area ft² / m²
N/A
Other Info
Fiberglass and stainless steel build
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
316
External Dimensions (WxDxH mm) [?]
1400 x 1350 x 2850

Description

Climavent Lakestyle 4kW/5.5HP wet type dust control plant.

Currently under refurbishment.

 Second hand Climavent Lakestyle 4kw/5.5hp wet type dust control plant.

The unit is a self contained wet dust scrubber that generates a self induced solid water curtain that entraps and
washes the dirty air removing any contaminates as it passes through

Features

  • Constructed from a PVC/GRP body with Stainless steel internal baffles.
  • Including a self contained silencer, water make up box, and fan starter.
  • Inlet Ø300mm dia positioned at the rear and an approx service duty of 2500cfm.
  • A second stage eliminator removes any water droplets that are carried over before allowing the cleaned air to be discharged back into the area.

Typical applications



These include any dust laden airstream that may carry sparks such as from grinding and fettling operations and where the type of dusts may be governed under the ATEX regulations whereby explosive dust are generated with such operations or processes as shot blasting and machining of aluminium, magneseium or any other white metal components.

pdf icon Print / Download Climavent Lakestyle Wet Dust Extraction Unit Datasheet

Additional files

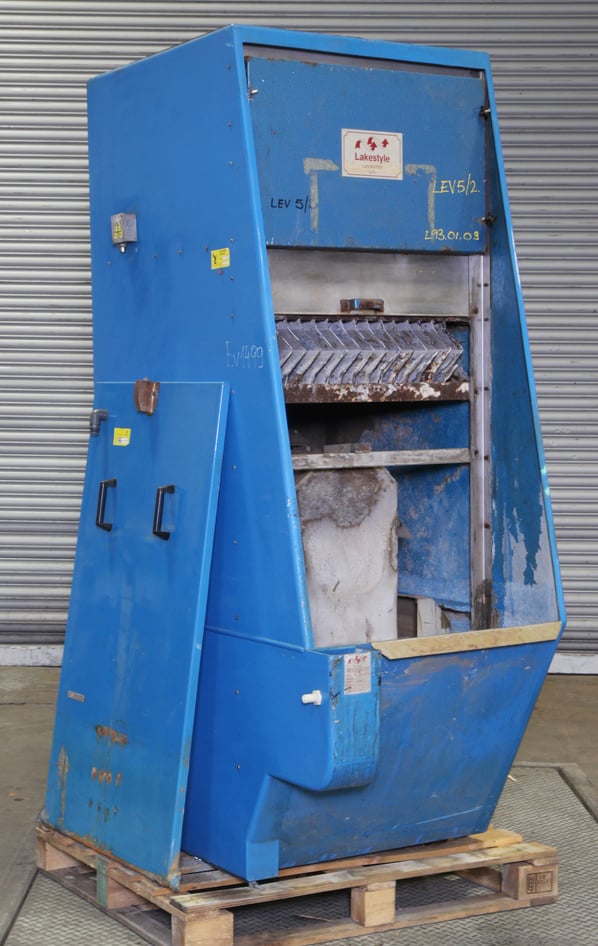

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
