Machines & equipment for sale

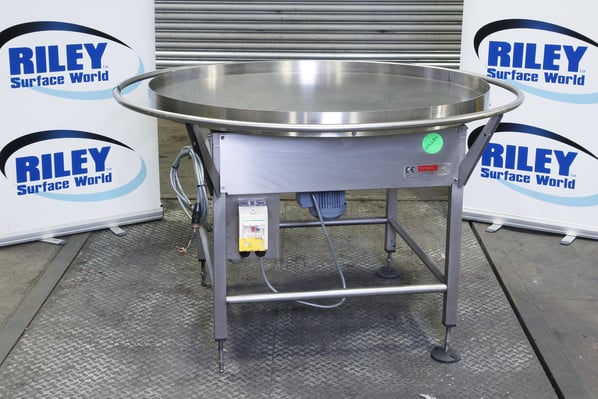

Syspal Limited Rotary Parts Inspection Turntable

Stock No
MZ686
Manufacturer
Syspal Limited
Model
C3182
Year of Manufacture
2013
Serial
516006072
Condition
From a working environment, Seen working by RSW, Excellent Condition, Current Model, Seen powered at RSW
Capacity
1200mm Diameter Table
Process Application
Product positioning
Other Info
Fully Stainless Construction
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1420 x 900

Description

The Syspal rotary turntable can be used as a standalone product to provide an absorber when required for accumulation or descrambling, or as part of an integrated product handling system.

The turntable, utilises high-quality material and design, at an affordable price to ensure applications remain efficient within the production area.

Manufactured from stainless steel, the turntable is of fixed speed configuration and is supplied with adjustable legs

Features

  • 304 stainless steel construction
  • Removable tops to aid cleaning & maintenance
  • Unique friction drive system for safe operation
  • HDPE top with the stainless top rail
  • Fixed speed
  • Outer perimeter guard rail
  • Product guide rail & diverter options available
  • 850mm+/- adjustable height with leveling feet

Controls



  • 415v-3Ph-50HZ electrical supply
  • External start/estop/control
  • Fixed guide rails

pdf icon Print / Download Syspal Limited Rotary Parts Inspection Turntable Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
