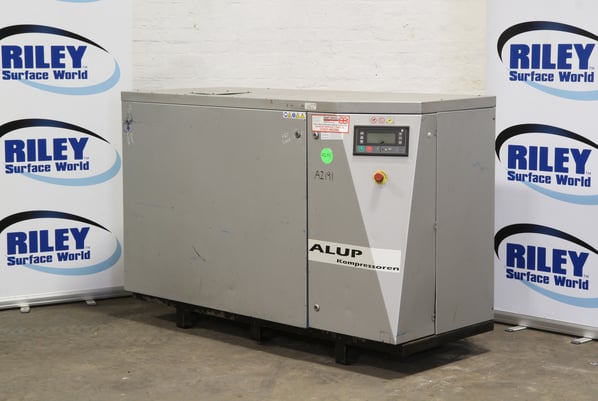

Alup Kompressors Heavy Duty Screw Type 30kW Air Compressor.

Stock No
AZ191
Manufacturer
Alup Kompressors
Model
Formula 30
Year of Manufacture
07/2007
Serial
3219780003
CFM/Kw
135 cfm/30 kW
Compressor Type
Screw Type
Other Info
International Air Compressor Group
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
770 kg
External Dimensions (WxDxH mm) [?]
710 x 1780 x 1170

Description

'ALUP Kompressor ' Formula 30 Lubricated Rotary Screw 30kW Compressor

The design concept is based on absolute reliability and flexibility. This range incorporates the latest technological advances and components which are designed for long service life to offer operators total peace of mind.

The high-efficiency cooling block lowers the outlet air temperature to only 10° higher than ambient temperature,  thus ensuring a low oil temperature.

 The air end designed and built in-house, thus ensuring a high level of quality control and maximum performance The multiple V- belt drive profile and automatic tensioning system ensures excellent transmission power and low maintenance cost.

Easy access to all internal components is easy, with panels on the four sides of the compressor are completely removable, ensuring easy and efficient maintenance to be carried out

The compressor is operated through an MC2 electronic controller allowing easy access to menus and all operation indicators needed to better manage the unit. Furthermore, the MC2 features scheduled maintenance, malfunction log, and other functions

 Easy replacement of the ‑ filtering material for the inlet air allows to always keep the inside of the compressor clean and therefore extend the life of the machine.

Features:

  • Rotary Screw Pump Oil Lubricated.
  • Belt Drive.
  • Motor 40hp - 30kw.
  • Voltage 400/3/50.
  • Output 3.62 m3/min - 128 cfm Free Air Delivered.
  • Max Working Pressure 10 Bar.
  • Advanced Monitoring System with Maintenance Warnings.
  • Max Duty Cycle 100%.
  • dB(A) 74.
  • Dimensions 710 x 1780 x 1170.

pdf icon Print / Download Alup Kompressors Heavy Duty Screw Type 30kW Air Compressor. Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
