Machines & equipment for sale

Lancer Front Loading Multi Phase Laboratory Spray Wash.

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Stock No
DZ1370
Manufacturer
Lancer
Model
1400upss
Year of Manufacture
1996
Serial
6E011413
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
3 shelves 550 x 450 x 50 each
Process Stages
Multiple Wash, Rinse and Dry Cycles
Other Info
Can run at a max temp 95°C
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
95
External Dimensions (WxDxH mm) [?]
780 x 1400 x 1780

Description

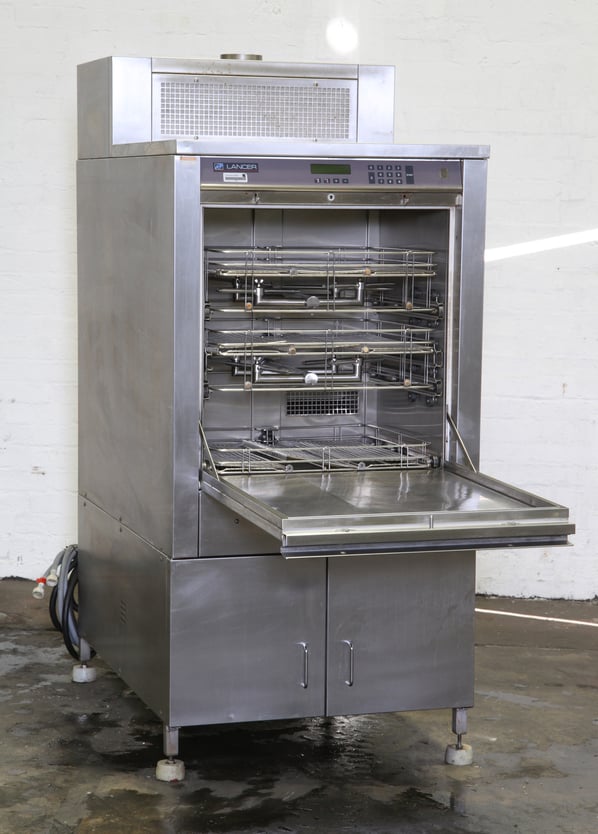

A Lancer 1400UPSS Spray Wash cleaner. Designed for use in laboratory facilities for cleaning a wide range of lab equipment to the highest of standards.

Features

  • Four pre-programmed washing cycles (Details below)
  • 3 mesh filters.
  • Salt pot.
  • Stainless Steel Construction.
  • Alarm monitors for Salt, Detergent, Acid, Filling, emptying, temperature.
  • Multi temperature probes.
  • 3 shelves 550 x 450 x 50.
  • Separate Detergent and Acid tank pick up points.

Washing Process

  • Place the items correctly on or in the baskets or racks so that they do not strike one against the other during the washing cycle. Check that they are correctly positioned, secure them with a cover grille or an injector cover grille (not supplied). You should only use baskets that are suitable for the parts to be washed (not supplied). Close the door, and the washing cycle can begin. When several baskets are used simultaneously, maximum one baskets can be in position out of chamber on the door and the runners. Maximum charge allowed on the intermediate runners is 26 Kg.

PROGRAMME 01

  • VOLUMETRIC FLASKS
  • Prewash with hot softened water
  • Wash with hot softened water (50°C) with the detergent.
  • Rinse with running water.
  • Acid rinse with the neutralizant acid.
  • Rinse with running water.
  • Last rinse with cold demineralised water
  • Disinfection at 50° with the demineralized or osmosis-treated water.
  • Drying

PROGRAMME 02

  • BACTERIOLOGY, VIROLOGY.
  • Prewash with hot softened water.
  • Wash with hot softened water (85°C) with the detergent.
  • Rinse with running water.
  • Acid rinse with the neutralizant acid.
  • 2 Rinses with running water.
  • Disinfection at 80° with the demineralized or osmosis-treated water.
  • Drying.

PROGRAMME 03

  • CHEMISTRY, BIOLOGY
  • Prewash with hot softened water.
  • Wash with hot softened water (70°C) with the detergent.
  • 2 Rinses with running water.
  • Acid rinse with the neutralizant acid.
  •  Rinse with running water.
  • Last rinse with cold demineralised water.
  • Disinfection at 80° with the demineralized or osmosis-treated water.
  • Drying.

PROGRAMME 04

  • GELOSE
  • Prewash with with hot softened water (90°C).
  • A second prewash with hot softened water.
  • Wash with hot softened water (90°C) with the detergent.
  • 2 Rinses with running water.
  • Acid rinse with the neutralizant acid.
  •  Rinse with running water.
  • Rinse with running water.
  • Disinfection at 80° with the demineralized or osmosis-treated water.
  • Drying.

pdf icon Print / Download Lancer Front Loading Multi Phase Laboratory Spray Wash. Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
