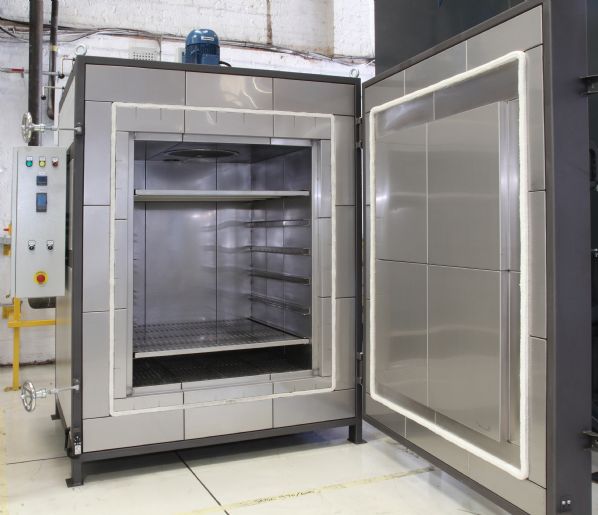

SNOL 970/350

Stock No

OZ2136

Manufacturer

SNOL

Model

970/350

Year of Manufacture

2020

Serial

045

Condition

Brand New, Current Model

Internal Size (WxDxH mm) [?]

900 x 900 x 1200

Max Temp

350°C

Other Info

Fully welded stainless steel chamber

Weight (kgs)

836 Kgs

External Dimensions (WxDxH mm) [?]

1800 x 1580 x 2330

Description

SNOL 350°C Oven Range

These industrial batch ovens are ideal for a wide variety of applications including  tempering, annealing, drying, preheating, and stress relieving.

Designed to operate up to 350°C these ovens have excellent performance and reliability. Well insulated and with good airflow these ovens offer  temperature stability and uniformity suitable for a wide range of manufacturing processes.

Air circulation is critical for efficient and uniform heating and horizontal air flow is achieved via heavy duty impellers running at 1400rpm and driven by heavy duty three phase electric motors.

Control of temperature is achieved via an Omron programmable controller coupled with a Solid State Relay and Eurotherm Over Temperature protection.

SNOL - a leading thermal engineering manufacturer

SNOL is one of the leading industrial oven manufacturers in the world. The company is based in Lithuania with subsidiaries in Germany, Russia, Belarus and Ukraine. Founded in 1960 SNOL and is part of the Baltic State's largest metal processing group, employing over 700 people. 90% of production is exported from Lithuania into 40 countries in Europe and worldwide.

Riley Surface World and SNOL is a unique partnership. It combines Europe’s finest industrial and laboratory oven manufacturer with a UK company renowned for its high levels of industry knowledge, service and technical support.

SNOL industrial ovens are available from stock or by special order, depending on requirements for temperature, size and metal treatment process.

Applications

Ideal for tempering, annealing, drying, preheating, and stress relieving of various materials and components at temperatures up to 350ºC.

Standard Features

These high temperature industrial batch ovens are manufactured with the following features as standard.

• Special Edition : Fully welded stainless steel chamber ideal for higher fume or moisture processes.
• 350°C maximum temperature rating
• Excellent performance and reliability
• Temperature stability in the working chamber at rated temperature in thermal steady state, without charge, not more than ± 1°C
• Temperature uniformity in working space at rated temperature in thermal steady state, without charge, not more than ± 5°C
• Low power consumption
• Short heating/cooling time
• A long working oven life, ensured by a ferritic stainless steel interior
• Mild steel clad exterior, with a powder painted exterior
• High thermal efficiency is achieved through the use of low thermal mass insulation
• High volume airflow for excellent uniformity & heating rates
• Micro processor Omron E5CC Programable Temperature controller
• Solid State Relay (SSR) heating power control for close control of the heating profile
• Eurotherm 3216I Over Temperature Protection
• OTP (over temperature protection)
• Heavy duty adjustable door hinges
• Twin shelves supplied with 5 shelf runners
• Door limit switch to shut heat off when door opens to protect the operator
• 1 year manufacturer warranty

Fully factory assembled and tested

The equipment is, fully factory tested and adjusted prior to shipment from the manufacturer. All safety interlocks are checked for proper operation and the equipment is operated at its maximum operating temperature for a test period. If a temperature uniformity profile test and certification is purchased, the profile test will be performed and documented prior to shipment.

Customers are invited and encouraged to visit our site to witness testing and sign off the equipment prior to shipment. During this visit, personnel are available to demonstrate, and answer any questions you may have concerning design, operation, and maintenance.

Technical specifications:

Temperature range max  350ºC
Chamber Material Stainless steel
Power 25kW
Voltage 400V

Print / Download SNOL 970/350 Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
