HydraPower Dynamics Paint & Powder Coating Facility

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 37,500 (+ VAT)
Clearance ends
09 December 2020 15:00 GMT while stocks last
Part of a Direct Site Clearance
Hydrapower Dynamics Paint & Powder Coating Facility
Condition
From a working environment, Seen working by RSW
Location
Telford, Shropshire, UK
Stock No
MIS500
Manufacturer
HydraPower Dynamics
Model
Substantial Structure Coat & Cure Line
Year of Manufacture
2011
Condition
From a working environment, Seen working by RSW
Process Stages
4
Other Info
Comtherm Burner model 150SP
Location
Telford, Shropshire, UK
External Dimensions (WxDxH mm)
6500 x 18,000 x 6000

Description

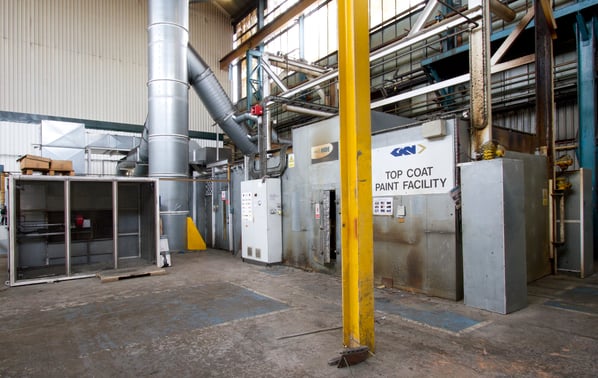

Hydrapower Dynamics Paint & Powder Coating Facility includes separate Pre -heating Oven with local exhaust ventilation and centralised control panel

First Stage - Pre-Heating Oven

Product is heated by means of hot air produced by a Comtherm gas burner which projects heat into the chamber via a steel plate.

The Hot air is then circulated within the chamber and filtered through to the  spraying and  powder coating chambers.

External dimensions 3200 x 7600 x 2150mm

Second Stage - Wet Spray and Powder Coating including a manual Powder Coating Gun

Suitable for use as both a wet paint spray chamber and powder coating for a variety of finishes.

Product can be presented to the chamber by trolley via a powered roller shutter door.

Heat is delivered via grills which are mounted within the roof of the chamber

Internal Dimensions: 2470 x 6800 x 2320 mm

Also included:

  • ITW Powder Coating Box Feeding Unit.
  • Fluorescent lighting.
  • Pedestrian door providing additional access

Third Stage  - Wet Spray & Powder Coated Drying Chamber

The third chamber is designed as a wet paint flash off drying or holding area .

Product can be presented to the chamber by trolley via a powered roller shutter door.

Heat is delivered via vents which are within the floor of the chamber

Once dry the product may be placed in the curing oven

Internal Dimensions: 2470 x 5600 x 2320 mm

Also included:

  • Pedestrian door providing additional access

Fourth Stage - Curing 200°c Oven

The oven is designed to cure the components after spraying/coating

Heat is generated by a Comtherm gas burner

Heat is produced via a packaged Comtherm burner and introduced to the oven via heat valves (wall  mounted)  positioned on each side of the oven providing even heat distribution.

Internal Dimensions: 2470 x 5400 x 2320 mm

Also included:

  • Vertical rising door (maximum height 6000 mm) allowing easy removal of components.
  • Pedestrian door providing additional access









pdf icon Print / Download HydraPower Dynamics Paint & Powder Coating Facility Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
