Kromh Model 3 Centrifugal Dryer A


Direct From Site Clearance
- Price [?]
- Please call on +44 (0) 1922 45 8000
- Part of a Direct Site Clearance
- Alkaline Zinc Barrel and Rack Plating Line & Equipment at Bott Ltd
- Condition
- From a working environment, Good Condition
- Location
- Bude, Cornwall, UK
- Stock No
- BOT225
- Manufacturer
- Kromh
- Model
- Model 3
- Year of Manufacture
- 1988
- Serial
- E19853 14/88
- Condition
- From a working environment, Good Condition
- Capacity
- 300 Ø mm x 260 mm deep
- Type
- Stainless Steel Basket
- Other Info
- Interlocked Lid and Process Timer.
- Location
- Bude, Cornwall, UK
- External Dimensions (WxDxH mm) [?]
- 450 x 600 x 900
Description

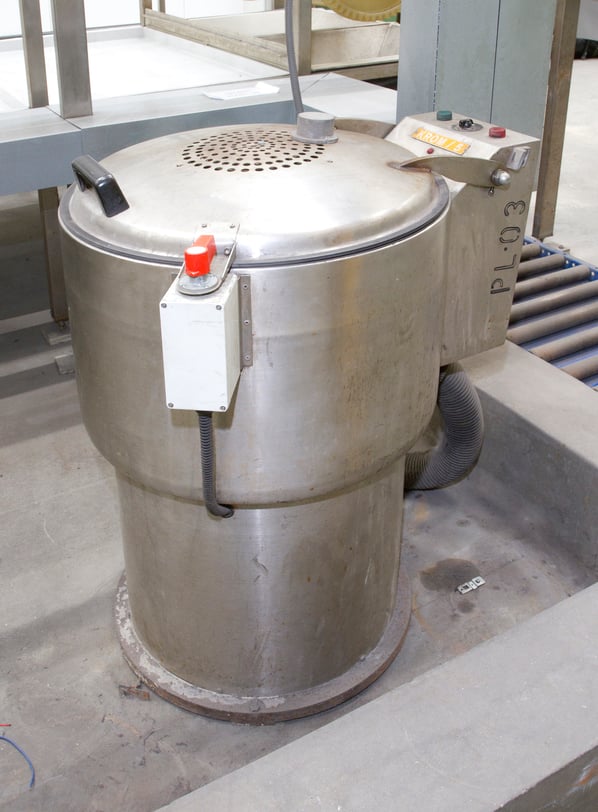

Kromh stainless steel centrifugal dryer
The following specification forms part of Alkaline Zinc Barrel and Rack Plating Facility comprising
The whole available for just £235,000 + VATTo register an interest for the whole, or individual components, please contact Helen on +44 (0)1922 458000 |
Based on the well-proven design with up to date features and interchangable baskets. The Kromh is an ideal machine for the mass drying of small parts.
Features include:
- DC injected braked motor
- Lid mounted heaters
- Floating centralisation bearing assembly
- Solenoid operated lid locking device (to prevent the lid being opened if the basket is rotating
- 15 min process timer which can be set to switch off the unit when the selected drying time has been achieved
- Variable temperature selector
- Load capacity 15kg
- Basket size Ø300 x 260 mm deep
- Input: 415 Volts, 3ph. 50hz
Description
Body, Lid, Work Basket and Basket Carrier manufactured in 18/8 Stainless Steel and finished 'self colour'
Variable drying cycle timers ( 0 - 15 mins ) which, in combination with the thermostatic heater control, allows the optimum parameters of heat and drying time to be selected according to the type of components being dried. At the end of the set time the Dryer automatically switches off.
Hinged vertical rising lid, fitted with variable output heaters with thermostatic control ( 0 - 90°C ).
Built in rubber cushioning negates vibration caused by out of balance loading. This means that although even distribution of the load in the basket is important, it is not critical to the operation of the dryers.
The Units are fitted with a self adjusting DC disc braked motors as standard.
A time delay controlled safety bolt prevents the lid from being opened until the basket has been allowed to stop rotating; and as an added safeguard a back up system monitors the operation of the safety bolt and prevents start up until the bolt has been activated.
The Dryers are supplied with a control panel with indicator lights for Dryer running, Lid release, Adjustable Timer, and Thermostatic control for heater.
A safety interlock with three position switch ensuring that the dryer cannot spin until lid is closed and the switch set to 'on'. At 'time out' the switch can be set to 'off' to bring the spin to a halt, but the switch cannot be turned to open position to release the lid for opening for a further 10 seconds.
Print / Download Kromh Model 3 Centrifugal Dryer A Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
