Industrial Cooling Systems (ICS) TAE 201 Chiller


Direct From Site Clearance
- Price [?]
- Please call on +44 (0) 1922 45 8000
- Part of a Direct Site Clearance
- Alkaline Zinc Barrel and Rack Plating Line & Equipment at Bott Ltd
- Condition
- From a working environment, Good Condition
- Location
- Bude, Cornwall, UK
- Stock No
- BOT250
- Manufacturer
- Industrial Cooling Systems (ICS)
- Model
- TAE 201 50KW (Two Fan Unit)
- Year of Manufacture
- 2000
- Serial
- 1200914150
- Condition
- From a working environment, Good Condition
- Ave. cooling capacity
- 61.5 kW @ 15°c cwlt
- Ave. Water Flow Rate
- 7.7-18m3/hr @ 2.8-1.7 ba
- Other Info
- Max Temperature 65 °c
- Location
- Bude, Cornwall, UK
- Weight (kgs)
- 785
- External Dimensions (WxDxH mm) [?]
- 860 x 2230 x 1900 mm
Description

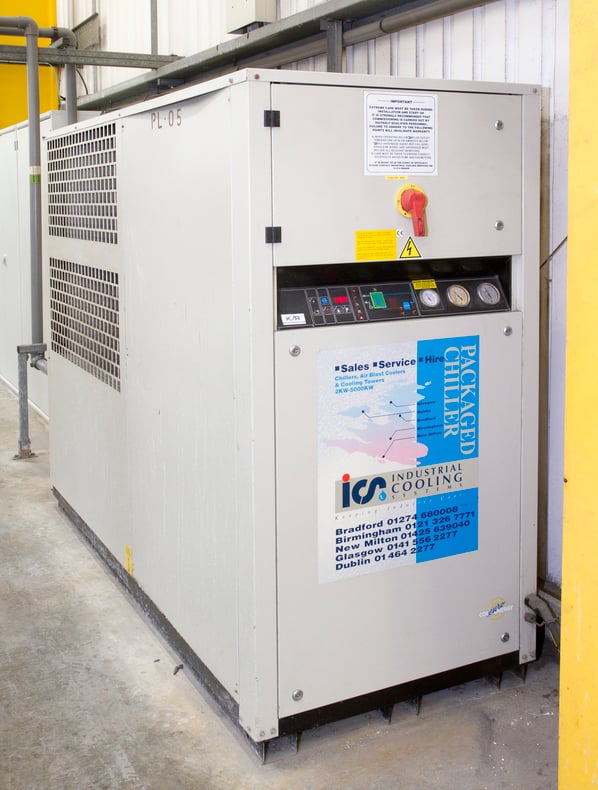

Industrial Cooling Systems (ICS) TAE 201 Chiller
The following specification forms part of Alkaline Zinc Barrel and Rack Plating Facility comprising
The whole available for just £235,000 + VATTo register an interest for the whole, or individual components, please contact Helen on +44 (0)1922 458000 |
A popular self contained air cooled package chiller having a cooling capacity 61.5 kW at 15ºc CWLT (chilled water leaving temperature) in an ambient of 32ºc.
Suitable for a wide range of solution and water cooling applications including cooling of anodising plating applications, injection moulding, food, diary, laser cutting and air conditioning to name but a few.
Comprehensive control panel incorporating a microprocessor based digital temperature controller with fault diagnostics.
Technical Specifications
Cooling efficiency of 61.5 kW @ 15°c cwlt in an ambient air temperature of 32°c.
- Internal tank capacity of 400 ltrs.
- Twin axial condenser cooling fans.
- 2" Bsp water connections.
- Overall dimensions 860 x 2230 x 1900 mm
- Weight 785kg
- 400v / 50Hz / 3ph 39 Amps
- Refrigerant - R407c
- Ambient water temp - 5/43°C
- Max working temp 65°C
- Max working pressure - 2.8 BAR
Print / Download Industrial Cooling Systems (ICS) TAE 201 Chiller Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
