Ardesia Grinding Room with Aspire Sanding Dust Suction Booth.

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 3,250 (+ VAT)
Clearance ends
12 November 2020 15:00 GMT while stocks last
Part of a Direct Site Clearance
AVS-SYS Composites Business Opportunity & Machinery
Condition
From a working environment, Excellent Condition
Location
Sandbach, Cheshire, UK
Stock No
AVS200
Manufacturer
Ardesia
Model
Grinding Room + Aspire Sanding Dust Suction Booth
Year of Manufacture
2018
Condition
From a working environment, Excellent Condition
Other Info
Used as prep room prior to paint
Location
Sandbach, Cheshire, UK
External Dimensions (WxDxH mm)
3000 4600 x 2000 (Room)

Description

The Layout, Curing, Grinding and Spray rooms all form part of the structure of the building and cannot be removed. Offers may be made for equipment within the rooms

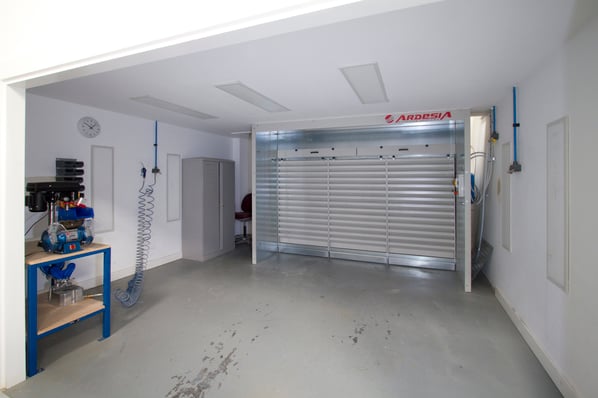

Grinding Room 3 x 4.6 x 2 m with Aspire Sanding Dust Suction Booth Used as prep room prior to paint.

The Aspire Sanding Dust Suction Booth.

The dust suction booth Aspire is indicated for the suctioning and removal of dust from sanding and it is built with galvanized press-folded sheet iron.
It's main feature of is the filtration of dust through aluminized polyester antistatic cartridges.
The booth Aspire is equipped with self cleaning system of the cartridges with jets of compressed air.
The dust jets are deposited in removable trays.

Filtration System

The filter cartridges are constructed of pleated polyester fabric, with the application of powdered aluminum that ensures the removal of electric charges that are created from the dust filter. The issue of dust is less than 0.1% grain size between 0.2 and 2 microns. The filter cartridge has excellent resistance to organic solvents, and has a maximal temperature of use in continuous operation of 150 ° C. Its particularly smooth surface allows for a detachment of the powder optimal.

Technical Characteristics
Weight, gr/m2 200
Thickness, mm 0,47
Maximum transverse tensile elongation, % 37
Maximum longitudinal tensile elongation,% 29,6
Permeability, m3/m2/h 920
Pore volume, % 68
Classification BIA USGC

Model:  ASPIRE -3
Usable width : 3000 mm
Overall width:  3450 mm
Overall height: 3250 mm
Quantity (cartridge):  5
Illumination, N x Wt: 2 x 58
Exhaust fan, power, kW: 4,0
Nominal air flow m3 / h: 15,000





pdf icon Print / Download Ardesia Grinding Room with Aspire Sanding Dust Suction Booth. Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
