Machines & equipment for sale

Vacublast (Wheelabrator) Complete Heavy Duty Pressure Fed Shot Blasting System.

Stock No
SZ895J
Manufacturer
Vacublast (Wheelabrator)
Model
Ventus 92PR
Year of Manufacture
2005
Serial
220432
Work Envelope (WxDxH mm) [?]
900 x 640 x 740
Work Handling Method
Manual
Other Info
Exception build quality
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
960 x 960 x 1760

Description

The Ventus 92 PR Pressure Fed Air Blast Cabinet (Now undergoing  refurbishment)

A favorite in the Aerospace and medical industries, where keeping abrasive quality is very important, the Ventus range is versatile enough to allow all types of finishes.

Designed specifically for production applications where a high work output is required combined with optimum abrasive quality. These machines offer advanced features to maximise abrasive integrity and ensure efficient operation using a separate free-standing recovery power pack.

Pressure fed - Designed specifically for production applications where a high intensity blasting process is required. It offers advanced features to ensure efficient operation and maximum operator comfort.

It incorporates an integral reverse jet dust collector to save space and minimise dust emissions.

Applications

  • Rust and heat scale removal
  • Paint stripping
  • Surface texturing
  • Preparation for painting,bonding and plating
  • Corrosion removal
  • Shot peening
  • General component cleaning
  • Cosmetic finishing
  • Mould cleaning
  • Glass etching

The attached power-pack and 41 ltr pressure pot has an adjustable double flux cyclone which feeds the blast pot and nozzle with only good regraded abrasives without any of the waste dust and fines recirculating in the system to increase productivity and offer a uniform finish.

Features

  • Low noise levels
  • Robust construction
  • High ventilation rate for good visibility
  • Large viewing window
  • Free standing blast generator and dust collector measuring 960 x 1500 x 2350
  • Pressure regulation at operator position for ease of adjustment
  • Reverse jet dust collector with clean side filter change
  • Elliptical glove ports to suit a wide range of operator sizes
  • Anti-static gauntlets
  • Internal blow down gun
  • Adjustable abrasive feeding.
  • Interlocked door
  • Sophisticated cyclone for efficient and adjustable abrasive separation
  • Vibrating screen for removal of oversize debris
  • Magnetic separator for removal of ferrous contaminants when used with non ferrous abrasive
  • Aerated adjustable feed valve for even abrasive feed

pdf icon Print / Download Vacublast (Wheelabrator) Complete Heavy Duty Pressure Fed Shot Blasting System. Datasheet

Additional files

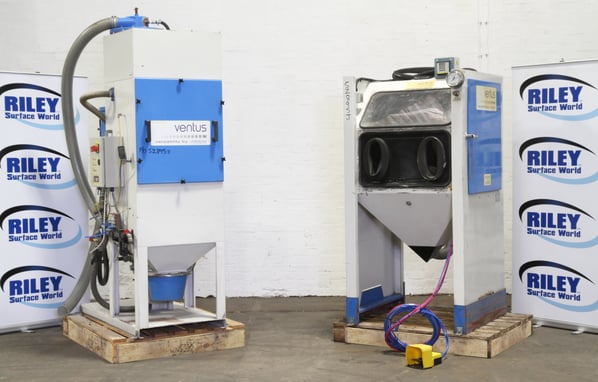

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
