Machines & equipment for sale

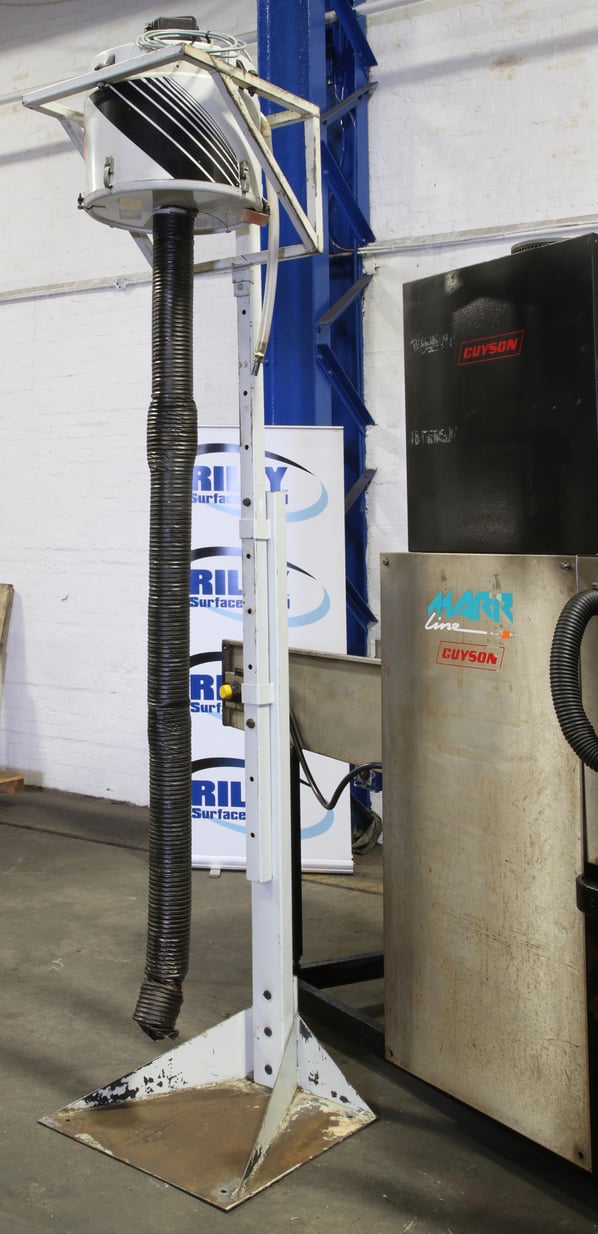

Filtermist Oil and Mist Extractor Eliminator Unit

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
MZ672
Manufacturer
Filtermist
Model
F14/8
Approx Duty CFM / M³/Hr
To suit spray wash plants
Other Info
Stand Mounted Easy Connection to Plant.
Location
Our Central Warehouse, Aldridge, UK

Description

Filtermist have long been established as the market leaders in the field of extraction of saturated air streams. They provide the most advanced and effective system available for the removal of mists.


How Filtermist Works


The units are used in a wide range of manufacturing, engineering and processing applications. These include automotive and aerospace through to the chemical and food sectors. The body of the unit contains impingement paddles that centrifuge the saturated air against the condensing wall to effectively remove the droplet from the air and return the liquid to source for reuse.

A large range of applications


Filtermist units are in use around the World in virtually all types of machining operations and industrial sectors, including: general machining; spark eroding; grinding; turning; food spraying and industrial washing processes.

Features of the Filtermist Range

Oil and water mists removed at source.
Used in machining processes in most industrial sectors.
Quiet operation combined with high performance.
Energy efficient.

Technical details

  • 1.1kw fan unit
  • 240 / 415 Volts
  • 50 Hz
  • 2880 rev / min
  • Ø 100 mm inlet
  • Ø 19 mm drain outlet.

pdf icon Print / Download Filtermist Oil and Mist Extractor Eliminator Unit Datasheet

Additional files

Replacement Filter Quote

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
