Machines & equipment for sale

Filtex Type H Fully Automatic Dust Extractor 2000

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Stock No
EZ1765
Manufacturer
Filtex
Model
FX 294
Year of Manufacture
2015
Serial
11709
Condition
From a working environment, Good Condition, Current Model
Approx Duty CFM / M³/Hr
2000 // 3500
Filter Area ft² / m²
294 // 27.30m2
Other Info
Built in Silencer
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
426
External Dimensions (WxDxH mm)
1690 x 1000 x 2470

Description

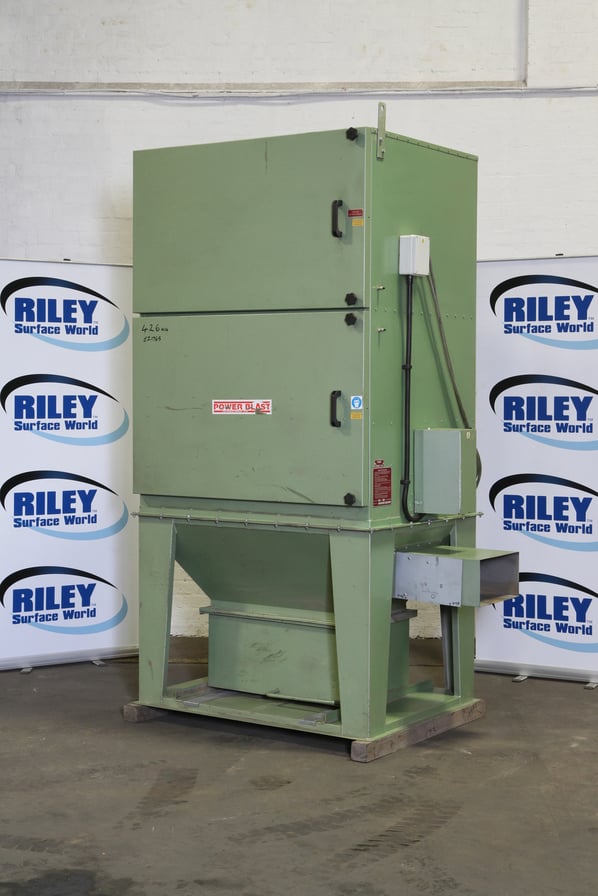

Filtex FX294 Type H Fully Automatic Dust Extractor 2000

A completely self-contained dust collector, with integral fan, acoustic attenuator and automatic controller the FX uses high efficiency envelope filter elements to cope with anything from fine and light dusts through to heavy and abrasive dusts.

The FX is designed to accept combinations of air volumes and filtration areas to meet varying applications of intermittent processes.

The FX benefits from as standard zintec steel for even more demanding environments.

This FX294H 7.5 kW 10Hp extraction fan is an extremely versatile fine dust filter, capable of handling
numerous dust types over a wide range of applications.

The FX filter performance enables the recirculation (in some circumstance) of filtered air back into the process area, promoting cost savings through energy efficiency by the return of treated air.

The above design duties are based on an 8:1 cloth to air ratio.Polyester needlefelt filter media is included as
standard. Other filter medias are available.

Fan duty of the FX294

  • Heavy dusts 4000 m³/h @ 1750 pa
  • Medium dusts 3000 m³/h @ 1750 pa
  • Light dusts 2000 m³/h @ 1750 pa

Details

  • Filter cloth area 27.30 m² 294Ft²
  • Fan motor 7.5 kw / 10 HP.
  • Overall dimensions 1400 x 1060 x 2472 mm high





pdf icon Print / Download Filtex Type H Fully Automatic Dust Extractor 2000 Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
