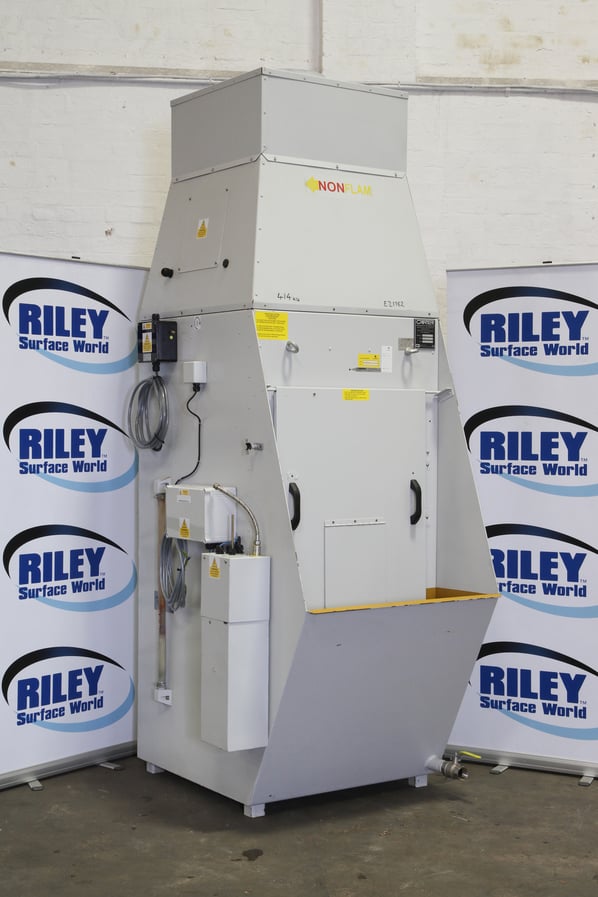

Carter Environmental Non Flam Wet Industrial Extraction Unit

Stock No
EZ1762
Manufacturer
Carter Environmental
Model
W120 LH
Year of Manufacture
2015
Serial
150202
Condition
Excellent Condition, Current Model, Seen powered at RSW
Approx Duty CFM / M³/Hr
2500 / 4250
Filter Area ft² / m²
Wet Scrubber
Other Info
ATEX + Precision Water Level Control.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
414
External Dimensions (WxDxH mm)
1060 x 1300 x 2800

Description

Carter Environmental Thorn W120 4kw/5.5hp out door suited wet type dust control plant.

The Thorn W120 unit is a self contained wet dust scrubber that generates a self induced solid water curtain that entraps and washes the dirty air removing any contaminates as it passes through.Constructed from a carbon steel body with steel internal baffles.

Dust extraction system that has the advantage of being able to be used with application covered under the ATEX regulations such as for use with reactive white metals

The unit is a self contained wet dust scrubber that generates a self induced solid water curtain that entraps and washes the dirty air removing any contaminates as it passes through . A second stage eliminator then removes any water droplets that are carried over before allowing the cleaned air to be discharged back into the area.

Typical applications include any dust laden airstream that may carry sparks such as from grinding and fettling operations, Wet and sticky dusts and where the type of dusts may be governed under the ATEX regulations whereby explosive dust are generated with such operations or processes as shot blasting and machining of aluminium or any white metal components.

Including a self contained silencer, water make up box, explosion relief panel and fan starter.
Inlet Ø300 mm dia.
Approx.duty 2500 cfm.



pdf icon Print / Download Carter Environmental Non Flam Wet Industrial Extraction Unit Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
