RHF Fans Ltd Mild Steel Centrifugal Fan

- Stock No
- FZ124
- Manufacturer
- RHF Fans Ltd
- Model
- RDCW
- Year of Manufacture
- 2007
- Serial
- 207/8566/1/1
- Condition
- Good Condition, Current Model, Seen powered at RSW
- Approx Duty CFM / M³/Hr
- 5821 m3/Hr. @ 1400 pascal
- Other Info
- Paddle type impeller 290mm inlet dia
- Location
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- 136
- External Dimensions (WxDxH mm) [?]
- 730 x 690 x 740
Description

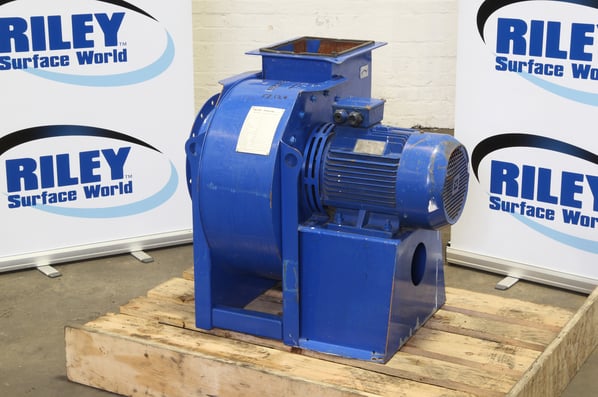

RHF Fans Ltd., manufactured this large discharge fan and motor to use with dust extraction units or other suitable applications.
Specifications
- year of manufacture 09/07
- Type is RDCW , No4 Pedestal - Universal.
- Volume of 5821 m³/Hr.
- Static pressure 1400 Pascal.
- Speed 2920 rev/min.
- 7.5kW
- Inlet diameter of 290mm
The impellor is directly mounted onto the motor shaft. The motor is outside of the airstream and the hub of the impellor protrudes from the casing. The fan is mounted onto a channel base. The outriggers enable easy drilling of foundation holes without having to mark and then move the fan.
Maximum air temperature is 200ºC. The impellor can be removed from drive side, without having to disturb the inlet or discharge ducting.
Print / Download RHF Fans Ltd Mild Steel Centrifugal Fan Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
