Machines & equipment for sale

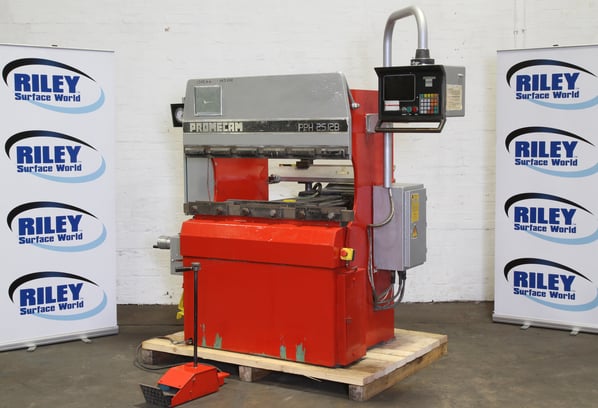

Pomecam 25 Ton Hydraulic Power Pressbrake

Used / Second Hand

Price
Please call on +44 (0) 1922 45 8000
Availability:
In stock now
Condition
From a working environment, Seen powered at RSW
Stock No
MZ666
Manufacturer
Pomecam
Model
PPH 25.12b
Year of Manufacture
10/09/86
Serial
IT2 025 12 3760
Condition
From a working environment, Seen powered at RSW
Capacity
1200 x 25 Ton
Process Application
Ideal for bending or folding sheet metal
Other Info
max stroke 105 bed length 1200
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1392
External Dimensions (WxDxH mm)
2000 x 1400 x 2050

Description

Pomecam 25 T Hydraulic Pressbrake with Concord controls

Details

Year of Manufacture 1986
Control Concord
Back gauge Yes
Guards No
Capacity 1200mm x 25 ton
Maximum length of bend 1200mm
Between frames 1010mm
Daylight 300mm
Throat depth 200mm
Stroke length 105mm
Input 415/3/50 hz
X = Back Gauge in/out X
Y = Beam rise & fall Y
Actuated via Wander type footswitch
Length 1700mm
Width 1400mm
Height 1700mm
Nett weight approx. 1,420 Kgs / 1.4 Tons



<th>Strength</th><th>Folding length</th><th>Distance between uprights</th><th>CNC</th><th>Throat</th><th>Vertical stroke</th><th>Axis number</th><th>Length x width x height</th><th>Weight</th>
25 T
1200 mm
1010 mm
Concord
200 mm
105 mm
2
-------------------
1700.0 × 1400.0 × 1700.0
1420 kg



pdf icon Print / Download Pomecam 25 Ton Hydraulic Power Pressbrake Datasheet

Additional files

press brake tooling

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
