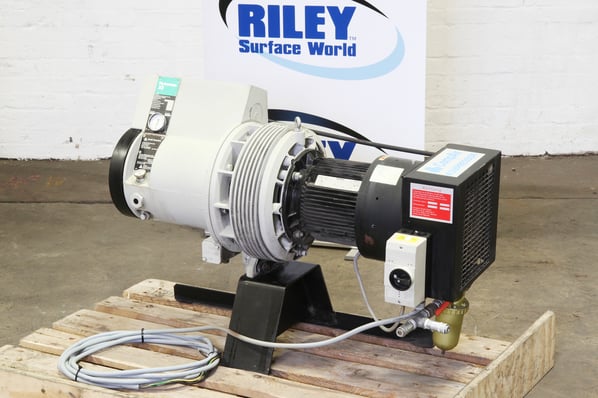

Hydrovane 23 Rotary Vane Compressor

Stock No
AZ183
Manufacturer
Hydrovane
Model
23
Year of Manufacture
1992
Serial
921033IV953732/1/5
Condition
Excellent Condition
CFM/Kw
20/ 4kW
Compressor Type
Rotary Vane
Other Info
Approx duty of 20 cfm @ 7.5bar
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
150
External Dimensions (WxDxH mm)
420 x 1020 x 710

Description

Hydrovane 23 Rotary Vane Compressor

The 23 series Hydrovane Compressors are oil sealed sliding vane rotary air compressors directly driven by electric motors.

Built-in pressure control ensures the compressor exactly matches the air demand and is rated for continuous operation in ambient temperatures up to 45° C / 113°  F

Unlike other types of compressors, Hydrovane’s produce air using a rotor within a cylindrical housing which offers many advantages including very quiet and reliable operation. You get smooth pulse free air from a Hydrovane in contrast to other compressors so you do not need an air receiver,

Hydrovane’s are also vibration free with white metal bushes in place of contact bearings to avoid major expense on overhauls in years to come. Suitable for all industrial application with a need for quiet, high quality and dependable air supply.

Approx duty of 20 cfm @ 7.5bar

Data

Displacement: 10.9 Litres (23 ft³/min)
Free Air Delivered: 10.1 Litres (121.5 ft³/min)
Normal Operating Pressure: 7 bar 1100 Lbf/In²)
Maximum Operating Pressure: 10 bar 1150 Lbf/In²)
Motor Power: 4 kW (5.5 hp)
Oil Capacity: 3.4 litres (6 pints)
Maximum Oil Temperature:  104°C (220°F)

Safety Valve Settings


7 bar Operating Pressure: 8.6 bar (125 Lbf /In²)
10 bar Operating Pressure: 12 bar (175 Lbf/In²)
Air Outlet PU: 1/2" B.S.P.
Minimum Recommended Pipe Size (up to 1000 ft): ¾" I .D

Aftercooler Data

Air Discharge Temperature: 2°C above ambient
Pressure Drop: 0.07 bar (1 Lbf /In²)
Air Outlet: 1/2" B.S.P.


* In view of possibility of additional air demands being added, a larger pipe size may be considered on original installation *

pdf icon Print / Download Hydrovane 23 Rotary Vane Compressor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
