Guyson International NEW Kerry Microsolve M250 Ultrasonic Precision Solvent Cleaning Line

Stock No
DZ1357JR
Manufacturer
Guyson International
Model
Microsolve M250 + SA Lift
Year of Manufacture
2020
Serial
805322
Condition
Brand New, Excellent Condition, Current Model, Seen powered at RSW
Work Envelope (WxDxH mm)
250 x 200 x 250 mm
Process Stages
Ultrasonic Immersion, Vapour Rinse & Dry
Other Info
Only 12 weeks production hours run
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
1410 x 950 x 1180 (+ Autotrans 2450 mm)

Description

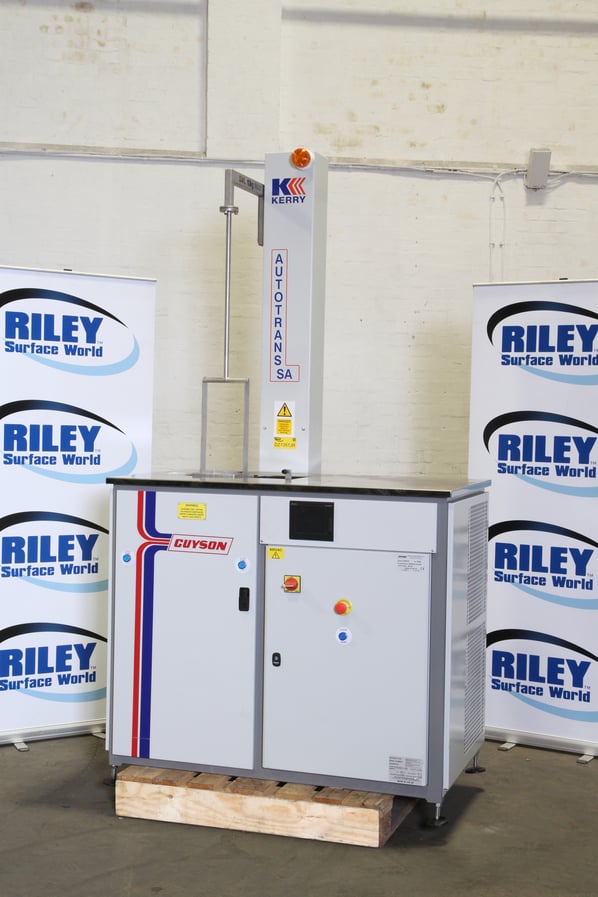

NEW Guyson International Kerry Microsolve M250 Ultrasonic Precision Solvent Cleaning Line

Cleaning with or without the use of ultrasonics is carried out in the stage one tank by immersion of the components into the solvent. The ultrasonic transducers are mounted on the tank base and powered by the Guyson Primewave dual frequency generator incorporating
ultrasonic output power control, pulsed operation of the ultrasonics (if required) and frequency modulation and sideband sweep. Stage one is also supplied with solution heating and a pumped closed-loop filtration system comprising a course strainer, fine filter cartridge,
welded pipework and “O” ring sealed valves.

The second tank (stage two), is electrically heated with unique pulsed control operation allowing the solvent to boil efficiently whilst helping to minimise solvent emissions.
The resulting vapour rinses the components, which are then dried in the freeboard zone (stage three). Distilled solvent, condensed by the primary cooling coils, passes through a water separator with in-line heat exchanger and returns to the ultrasonic tank, displacing contaminated solvent into the boiling sump. Distillation, together with filtration of the solvent, ensures that the ultrasonic tank is maintained at a controlled level of cleanliness.

Solvent retention features unique to the Microsolve range include triple coil reflux cooling, vapour break, 150% freeboard, optional auto top-up and solvent monitoring. These ensure that systems are safe and comply fully with environmental and safety legislation. These design features also mean that Microsolve systems are able to operate with low, predictable solvent
usage and customers enjoy low, predictable running costs.

The Mono-Solvent process is intended for applications with light to medium contamination levels and typical applications include precision cleaning of bearings, gyro components and medical components; maintenance cleaning of pneumatic and hydraulic components; and, in electronics, rosin flux removal from PCBs or from solder jigs and fixtures.

Features

  • Ultrasonic clean with filtration
  • Boiling solvent sump
  • Vapour rinse zone
  • Freeboard dry with refrigerated cooling coils
  • Water separator / sieve
  • Refrigerated cooling system
  • PLC based electrical controls
  • Sliding lid
  • Semi-automatic Single Axis lift

VentilatorChallengeUK

This machine was used by the VentilatorChallengeUK consortium in April 2020 as part of the UK Government response to Covid-19.  In just 12 weeks the VentilatorChallengeUK Consortium built 13,000+ Ventilators to help the NHS combat Covid-19. Now the immediate need has passed surplus plant is available.

This machine has been run using medical grade solvent cleaning to the very high standards needed for ventilator equipment (quantities of 3M Novec 71DE solvent available by separate negotiation).

Rolls Royce Logo

This machine has been moved from Rolls Royce, Filton, UK to Riley Surface World's facility.

It has undergone engineer tests and assessment ready for immediate despatch.

ventilatorchallengeuk Logo


Technical Detail

  • Overall - Length (Left to right) 1410 mm
  • Overall - Width (Front to back) 950 mm
  • Overall - Height* 1180 mm (*The addition of adjustable feet will increase any Microsolve height by 30 - 80 mm approx.)
  • Tank (Internal) -  Length 200 mm
  • Tank (Internal) -  Width 250 mm
  • Tank (Internal) -  Depth 250 mm
  • Basket (Internal) -  Length 155 mm
  • Basket (Internal) -  Width 193 mm
  • Vapour Depth 250 mm
  • Freeboard height 375 mm
  • Initial fill (litres) 25


Ultrasonic Stages

  • Power 300
  • Watts/litre 20


Electrics

  • Electrical supply 415V 50 Hz 3 phase N&E
  • Loading per phase (A) 16


Handling System

  • Single Axis lift Option

Materials

  • Tank units 316L electropolished stainless steel
  • Pipework Stainless steel
  • Framework, panels Mild steel


Paint

  • Durable, Semi-gloss, Acrylic
  • Box section frame RAL 7037 Dusty Grey
  • Panels RAL 7035 Light Grey


Control Panel

  • HMI With Bright STN Technology


Function buttons

  • On/Off
  • Ultrasonics Control
  • Filtration Control
  • Temperature Display
  • Set Variable Operating Parameters
