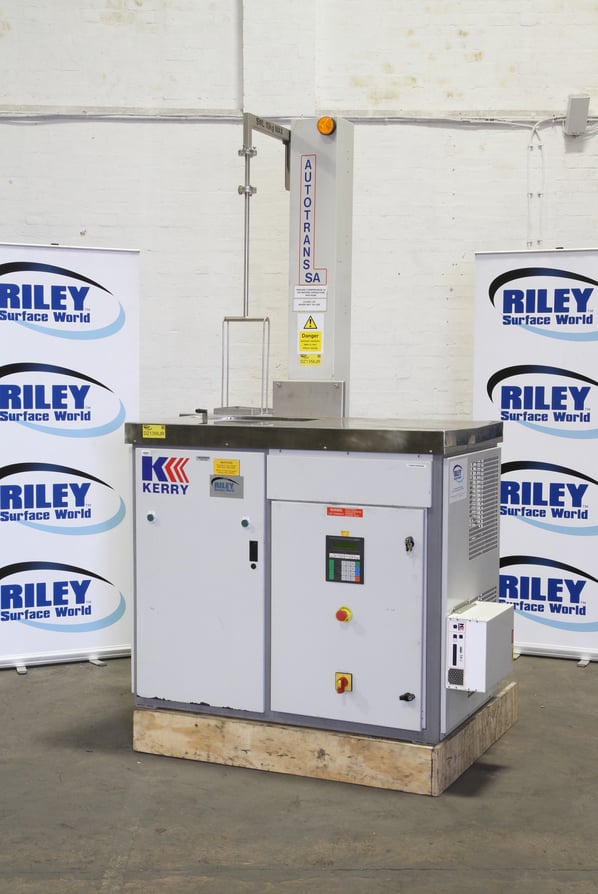

Guyson International Kerry Microsolve M250 Ultrasonic Precision Solvent Cleaning Line

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
Refurbished by RSW, Good Condition, Current Model, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
DZ1356JR
Manufacturer
Guyson International
Model
Microsolve M250
Year of Manufacture
1999
Serial
59593/ 1 - 8 - 99
Condition
Refurbished by RSW, Good Condition, Current Model, Seen powered at RSW
Work Envelope (WxDxH mm) [?]
250 x 200 x 250 mm
Process Stages
Ultrasonic Immersion, Vapour Rinse & Dry
Other Info
Medical quality cleaning NOVEC 71DE
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1600 x 1030 x 1200 (+ Autotrans 2450mm)

Description

NEW Guyson International Kerry Microsolve M250 Ultrasonic Precision Solvent Cleaning Line

Cleaning with or without the use of ultrasonics is carried out in the stage one tank by immersion of the components into the solvent. The ultrasonic transducers are mounted on the tank base and powered by the Guyson Primewave dual frequency generator incorporating
ultrasonic output power control, pulsed operation of the ultrasonics (if required) and frequency modulation and sideband sweep. Stage one is also supplied with solution heating and a pumped closed-loop filtration system comprising a course strainer, fine filter cartridge,
welded pipework and “O” ring sealed valves.

The second tank (stage two), is electrically heated with unique pulsed control operation allowing the solvent to boil efficiently whilst helping to minimise solvent emissions.
The resulting vapour rinses the components, which are then dried in the freeboard zone (stage three). Distilled solvent, condensed by the primary cooling coils, passes through a water separator with in-line heat exchanger and returns to the ultrasonic tank, displacing contaminated solvent into the boiling sump. Distillation, together with filtration of the solvent, ensures that the ultrasonic tank is maintained at a controlled level of cleanliness.

Solvent retention features unique to the Microsolve range include triple coil reflux cooling, vapour break, 150% freeboard, optional auto top-up and solvent monitoring. These ensure that systems are safe and comply fully with environmental and safety legislation. These design features also mean that Microsolve systems are able to operate with low, predictable solvent
usage and customers enjoy low, predictable running costs.

The Mono-Solvent process is intended for applications with light to medium contamination levels and typical applications include precision cleaning of bearings, gyro components and medical components; maintenance cleaning of pneumatic and hydraulic components; and, in electronics, rosin flux removal from PCBs or from solder jigs and fixtures.

VentilatorChallengeUK

This machine was used by the VentilatorChallengeUK consortium in April 2020 as part of the UK Government response to Covid-19.  In just 12 weeks the VentilatorChallengeUK Consortium built 13,000+ Ventilators to help the NHS combat Covid-19. Now the immediate need has passed surplus plant is available.

This machine has been run using medical grade solvent cleaning to the very high standards needed for ventilator equipment (quantities of 3M Novec 71DE solvent available by separate negotiation).

Rolls Royce Logo

This machine has been moved from Rolls Royce, Filton, UK to Riley Surface World's facility.

It has undergone engineer tests and assessment ready for immediate despatch.

ventilatorchallengeuk Logo

Features
Ultrasonic clean with filtration
Boiling solvent sump
Vapour rinse zone
Freeboard dry with refrigerated cooling coils
Water separator / sieve
Refrigerated cooling system
PLC based electrical controls
Sliding lid
Semi-automatic Single Axis lift

Technical Detail

Overall - Length (Left to right) 1600 mm
Overall - Width (Front to back) 1030 mm
Overall - Height* 1200 mm (*The addition of adjustable feet will increase any Microsolve height by 30 - 80 mm approx.)
Tank (Internal) -  Length 200 mm
Tank (Internal) -  Width 250 mm
Tank (Internal) -  Depth 250 mm
Basket (Internal) -  Length 130 mm
Basket (Internal) -  Width 193 mm
Vapour Depth 250 mm
Freeboard height 375 mm
Initial fill (litres) 25

Ultrasonic Stages
Power 300
Watts/litre 20

Electrics
Electrical supply 415V 50 Hz 3 phase N&E
Loading per phase (A) 16

Handling System
Single Axis lift Option

Materials
Tank units 316L electropolished stainless steel
Pipework Stainless steel
Framework, panels Mild steel

Paint
Durable, Semi-gloss, Acrylic
Box section frame RAL 7037 Dusty Grey
Panels RAL 7035 Light Grey

Control Panel
HMI With Bright STN Technology

Function buttons
On/Off
Ultrasonics Control
Filtration Control
Temperature Display
Set Variable Operating Parameters

pdf icon Print / Download Guyson International Kerry Microsolve M250 Ultrasonic Precision Solvent Cleaning Line Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
