Machines & equipment for sale

Donaldson Torit (DCE) UMA 152 K5 Dust Extractor

Stock No
EZ1751R
Manufacturer
Donaldson Torit (DCE)
Model
UMA 152 K5
Serial
646947
Condition
From a working environment, Good Condition, Current Model
Approx Duty CFM / M³/Hr
750 // 1275
Filter Area ft² / m²
150 // 15 m2
Other Info
2.2 kW Fan
Location
Scunthorpe, UK
Weight (kgs)
220
External Dimensions (WxDxH mm)
1300 x 850 x 2700

Description

DCE UMA 152 K5 Dust Extractor

A second hand DCE Unimaster UMA 152 K5 dust extraction unit designed to stand alongside a very wide range of dust generating machinery and processes.

The UMA 152 K5 is a compact, self contained fabric filter dust control unit complete with 2.2 kW fan, self cleaning mechanism, secondary filter, bucket balance, easy-access filter assembly & a 2ft³ waste container bucket and IP rating making it suitable for outdoor siting.

Design features

  • Compact Design
  • Minimises floor space and fits in virtually any plant layout.
  • Versatility
  • To suit a variety of dust collection applications
  • Quiet & Efficient Operation
  • Motors and fan are enclosed in the top collector housing to minimise noise.
  • Easy Maintenance
  • 2ft³ waste collection bucket
  • Allows for easy removal and maintenance of the waste bin.
  • Inlet Deflector
  • Knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • Heavy-duty flexible metal inner bag coils
  • Inserted into the filter bags, the mattresses keeps the filter bags open to maximize airflow and assist in releasing the dust during its cleaning cycle.
  • Secondary filter
  • Used to ensure dusts are not return to the work area
  • Bin balance
  • Allows collection bags to be used in the collection bin for easy and safe removal of contaminates.
  • Bag-Release Screws
  • Allow for easy removal of bags from the front of the machine.
  • Selection of filter media
  • Allows the unit to be tailored to suit specific dusts and applications

pdf icon Print / Download Donaldson Torit (DCE) UMA 152 K5 Dust Extractor Datasheet

Additional files

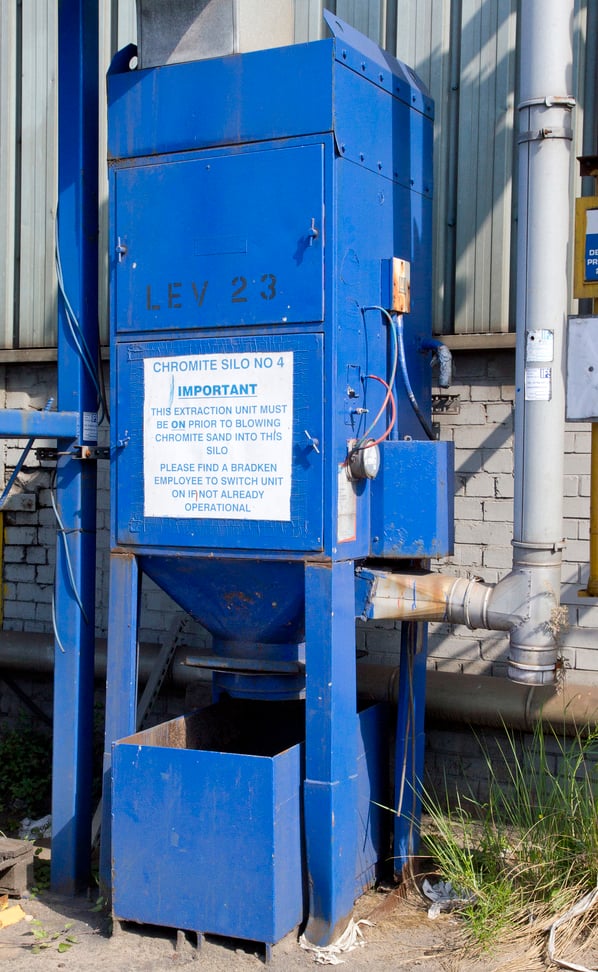

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
