Donaldson Torit (DCE) UMA 252 G5 Dust Extractor

Stock No
EZ1750R
Manufacturer
Donaldson Torit (DCE)
Model
UMA 252 G5
Condition
From a working environment, Good Condition, Current Model
Approx Duty CFM / M³/Hr
1200 // 2400
Filter Area ft² / m²
250 // 25
Other Info
Secondary filtration fitted
Location
Scunthorpe, UK
Weight (kgs)
415
External Dimensions (WxDxH mm)
1350 x 800 x 2600 (not inc. ext. height)

Description

DCE UMA 250 G5 Dust Extractor

A second hand DCE Unimaster UMA 252 G5 dust extraction unit designed to stand alongside a very wide range of dust generating machinery and processes.

The UMA 252 is a compact, self contained fabric filter dust control unit complete with 3kW fan, self cleaning mechanism, ATEX rated explosion relief panel, secondary filter, easy-access filter assembly, & a 2ft³  waste container bucket with quick-release sealer gear and bucket balance facility.


Design features

  • Compact Design
  • Minimises floor space and fits in virtually any plant layout.
  • Versatility
  • To suit a variety of dust collection applications
  • Quiet & Efficient Operation
  • Motors and fan are enclosed in collector housing to minimise noise.
  • 2ft³ collection bucket
  • Bucket balance
  • Allows plastic collection bags to be used within the collection buckets by equalising the pressure behind the bag and preventing it being sucked upwards.
  • Explosion relief panel
  • Allows the unit to be safely used with potentially explosive dusts and gases, such as those generated like aluminium and flour dusts in an air enriched environment.
  • Silencer box
  • Reduces noise levels in the environment.
  • Secondary filter unit
  • Prevents sub • Quick-Release Lever
  • Allows for easy removal and maintenance of bin.
  • Inlet Deflector
  • Knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • Heavy-duty flexible metal inner bag coils
  • Inserted into filter bags keeps bags open to maximize airflow and assist in knocking dust off during cleaning cycle.
  • Bag-Release Screws
  • Allow for easy removal of bags.

pdf icon Print / Download Donaldson Torit (DCE) UMA 252 G5 Dust Extractor Datasheet

Additional files

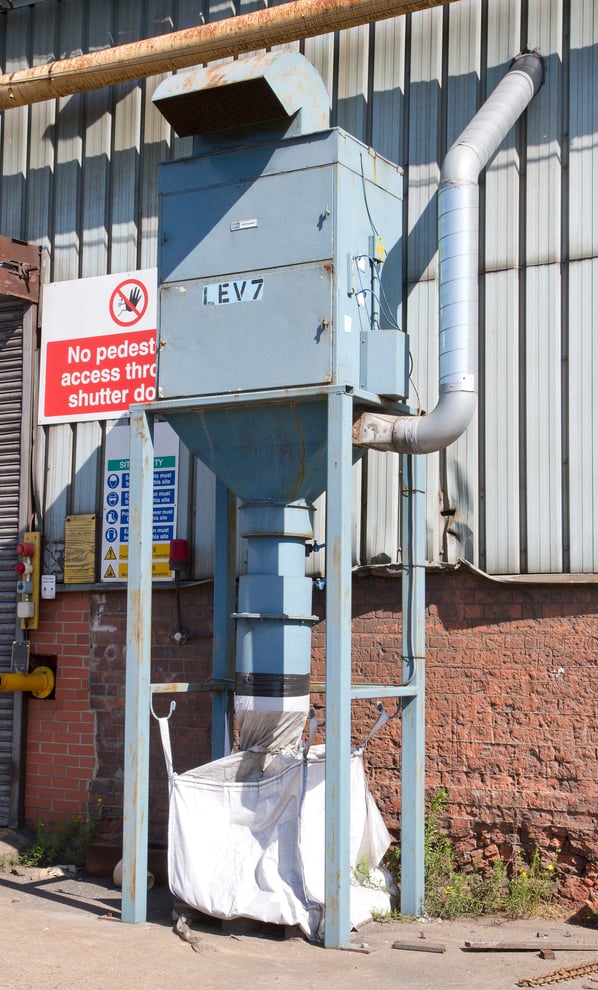

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
