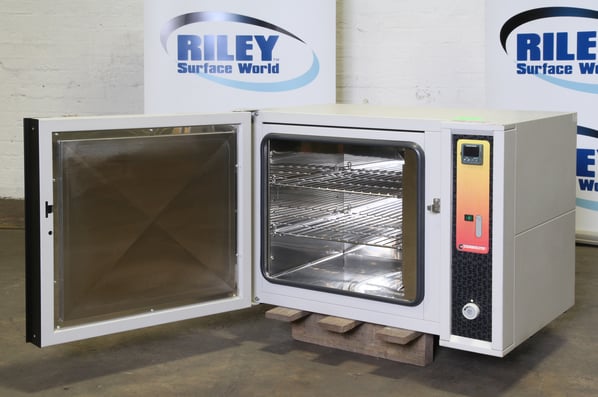

Carbolite 300°C Air Circulated Heavy Duty Laboratory Oven

Stock No
OZ2103
Manufacturer
Carbolite
Model
PF60
Serial
21-102441
Condition
Excellent Condition, Current Model, Seen powered at RSW
Internal Size (WxDxH mm)
390 x 390 x 390
Max Temp
300
Other Info
Volume 60 Litres
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
42
External Dimensions (WxDxH mm)
765 x 560 x 565

Description

Carbolite PF60 300c Fan Convection Laboratory Oven

Standard features

  • Maximum operating temperature 300 °C
  • Fan convection for rapid heating & recovery & excellent uniformity
  • Chemically resistant stainless steel liner
  • Two nickel-chrome plated wire shelves
  • Lever latch door & airtight silicone seal
  • Compliant with safety standard BS EN 61010-2-010:2003

Technical Data

Model: PF60
Max. temp. [°C]: 300
Temp. stability [°C]: +/- 0.2
Temp. uniformity [°C]: +/- 5.0 @ 100 °C
Heat-up time [mins]: 16
Recovery time [mins]: 4
Dimensions: Internal W x D x H [mm]: 390 x 390 x 390
Dimensions: External W x D x H [mm]: 765 x 560 x 565
Shelves fitted / accepted: 2/5
Shelf loading each / total [kg]: 10
Volume [litres]: 66
Air changes/ hr: 21/117
Max. power [W]: 1500
Holding power [W]: 775
Weight [kg]: 42



Options

• Over-temperature protection (recommended to protect valuable contents & for unattended operation)
• Access port for independent thermocouple
• Cable entry port
• Variable speed fan control
• Stoving & curing for extraction of small volumes of volatile solvents (not compatible with viewing window option)
• Viewing window (not compatible with stoving & curing option)
• Interior light (not compatible with stoving & curing option)
• Air exhaust fan
• Moisture extraction option (comprising sealed seams and air exhaust fan)
• Lockable door
• Door interlock activated by temperature alarm relay (3216, CC-T1, 3508 or nanodac) or program segment output (CC-T1, 3508 or nanodac)
• Door switch to isolate elements and fan

pdf icon Print / Download Carbolite 300°C Air Circulated Heavy Duty Laboratory Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
