Graco Husky 515 Double Diaphragm Pump

Graco Double Diaphragm Pump
- Stock No
- TZ248
- Manufacturer
- Graco
- Model
- D5B977
- Serial
- 16G12E
- Condition
- Seen working by RSW, Good Condition, Current Model
- Capacity
- 15 - 57 GPM min.
- Process Application
- Pumping of Liquids
- Other Info
- Polypropylene body
- Location
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- 10
Description

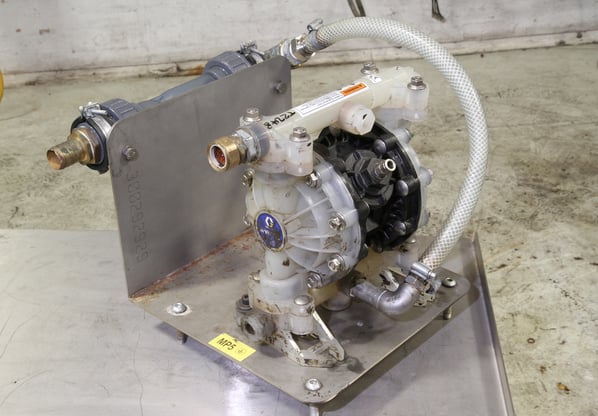

Graco Husky 515 Double Diaphragm Pump manufactured from Polypropylene body with Buna-n bulbs and diaphragms. Designed to pump between 15 and 57 gallons per minute up to a maximum pressure of 100 psi / 7 bar.
Technical spec.
- Max fluid working pressure 100 psi / 7 bar.
- Air pressure operating range 30 to 100 psi / 2.1 to 7 bar.
- Operating temperature range - minimum 40°F / 4°C max 150°F / 66°C
- Air inlet 1/4" npt(f)
- Air export 3/8" npt(f)
- Weight 6.5 Lb (2.9Kg)
Print / Download Graco Husky 515 Double Diaphragm Pump Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
