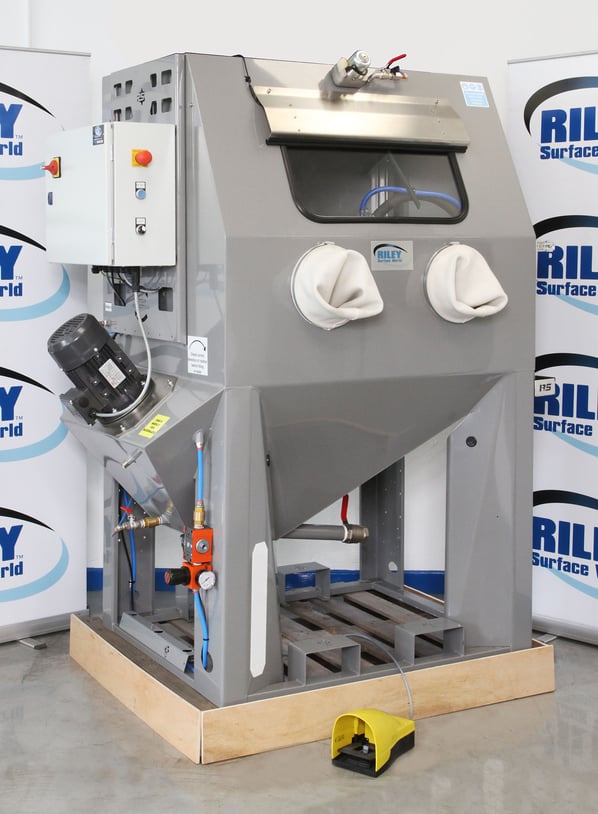

Riley 1100 Wet Blast Machine


Price [?]
£ Login or Register for price
1 year manufacturer guarantee
In stock now
Brand New, Current Model

From just £226.67 a month

Finance available 4 years at 3.63% flat rate and VAT value as a deposit.
Terms & Conditions Apply [?]

Get a Quote >

Stock No
Year of Manufacture
Brand New, Current Model
Work Envelope (WxDxH mm)
1080 x 880 x 950
Work Handling Method
Other Info
5 Year Cabinet Warranty
Weight (kgs)
External Dimensions (WxDxH mm)
1500 x 950 x 1880


Riley "Wet Blast" Wet Blasting Cabinet Range

Our range of wet blasting machines is designed  to simultaneously degrease and blast multiple components.

The process cleans by flow, and not impact, producing a 'soft' finish. The water acts as a lubricant, avoiding media impregnation and also extending the life of the blast media.

These are all stainless steel constructed blast cabinets with an internally submersed glandless polyurethane pump and tungsten carbide tipped blast nozzle. These features provide extra reliability, life and lower servicing costs.

The pump bodies have been specially designed for minimal wear and longevity, due to the a combination of superior design and materials. They reflect the abrasive away from the surface of he pump thus drastically lengthening the life of the pump body.
In the unlikely event that the pump requires replacement, its price is a fraction of a standard pump.

Typical process is as follows:

  1. The water/media slurry is contained within the wet blasting cabinet sump.
  2. Delivery of the slurry to the manual blast nozzle is via a glandless polyurethane pump and associated hose located inside the wet blasting machine.
  3. Compressed air is added at the blast nozzle to accelerate the slurry and create the cleaning effect.
  4. After contact with the component, the slurry then drains back into the sump creating a re-circulating system.

Features & Benefits

Riley Wet Blast Machines come with an array of standard features

  • Constructed from high quality 2mm 304 stainless steel for a longer service life
  • Fully powder coated in grey or white for easier cleaning and maintenance and corrosion resistance
  • Large front viewing window for excellent operator visibility
  • Automatic windscreen wiper and rinse which is activated with the foot pedal
  • Four anti-shadow LED lights for operator visibility
  • Right hand side door with double media catch trays
  • Media recirculating pinch valve to restrict reusable media going to waste
  • Door open safety switch for operator safety
  • Light weight polyurethane gun
  • Tungsten carbide blast nozzle
  • Component wash off gun for a quick and easy rinse
  • Air blow off gun to dry off components
  • Heavy duty rubber gauntlets for operator comfort and safety
  • Pressure regulator with gauge for fine adjustment to blasting pressure
  • Leg mounted control panel with large emergency stop button
  • Plastic sedimentation tank
  • 3Kw thermostatically controlled sump heater to aid de-greasing with ON/OFF switch
  • 2.2kW media blast pump mounted directly into the sump

Service requirements

  • Electrical supply 415v 3 Phase + Neutral
  • Air supply 7 bar (100psi @ 40cfm)
  • Air operating range 2-6 bar (30-80psi)
  • Water Supply 1/2" BSP
  • Drain Floor Level Approx 10 Litres/min
  • Ventilation 4" / 110mm Duct to outside atmosphere.

pdf icon Print / Download Riley 1100 Wet Blast Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
